Validate MTO on EKS#

In this guide, we will set up two tenants—Logistics and Retail—for an imaginary e-commerce company, each with one user.

  • Falcon will be the user assigned to the Logistics tenant.
  • Bear will be the user assigned to the Retail tenant.

1. Create & Configure AWS IAM Users & Groups#

1.1. Create a user#

Create a user with username falcon@nordmart.com

$ aws iam create-user --user-name falcon@nordmart.com

Output:
{
    "User": {
        "Path": "/",
        "UserName": "falcon@nordmart.com",
        "UserId": "AIDAZFWZTAEJ7ILHDKLLD",
        "Arn": "arn:aws:iam::630742778131:user/falcon@nordmart.com",
        "CreateDate": "2025-02-03T13:09:51Z"
    }
}

1.2. Attach cluster access policy to user#

Create a AWS JSON policy file. This policy will allow the user to access the cluster.

{
    "Statement": [
        {
            "Action": "eks:DescribeCluster",
            "Effect": "Allow",
            "Resource": "*"
        }
    ],
    "Version": "2012-10-17"
}

Attach a policy to user by running the following command

aws iam put-user-policy --user-name falcon@nordmart.com --policy-document file://policy.json --policy-name ClusterAccess

1.3. Generate access key for the user#

Executing the following command will provide the Access Key Id and Access Secret Key Id that can be used to log in later

aws iam create-access-key --user-name "falcon@nordmart.com"

1.4. Grant user access to Kubernetes via ConfigMap#

Use the following command to map this user in aws-auth ConfigMap in kube-system namespace.

eksctl create iamidentitymapping --cluster "<CLUSTER_NAME>" \
                                 --region "<AWS_REGION>" \
                                 --arn "<USER_ARN>" \
                                 --username "falcon@nordmart.com" \
                                 --no-duplicate-arns

Repeat the same steps to create another user bear@nordmart.com for retail tenant.

2. Create MTO Quota#

As cluster admin create a Quota CR with some resource limits:

kubectl apply -f - <<EOF
apiVersion: tenantoperator.stakater.com/v1beta1
kind: Quota
metadata:
  name: small
spec:
  limitrange:
    limits:
    - max:
        cpu: 800m
      min:
        cpu: 200m
      type: Container
  resourcequota:
    hard:
      configmaps: "10"
      memory: "8Gi"
EOF

3. Create MTO Tenants#

As cluster admin create 2 tenants logistics and retail with one user each:

kubectl apply -f - <<EOF
apiVersion: tenantoperator.stakater.com/v1beta3
kind: Tenant
metadata:
  name: logistics
spec:
  namespaces:
    withTenantPrefix:
    - dev
    - build
  accessControl:
    owners:
      users:
      - falcon@nordmart.com
  quota: small
EOF

kubectl apply -f - <<EOF
apiVersion: tenantoperator.stakater.com/v1beta3
kind: Tenant
metadata:
  name: retail
spec:
  namespaces:
    withTenantPrefix:
    - dev
    - build
  accessControl:
    owners:
      users:
      - bear@nordmart.com
  quota: small
EOF

Notice that the only difference in both tenant specs are the users.

4. List namespaces as cluster admin#

Listing the namespaces as cluster admin will show following namespaces:

$ kubectl get namespaces

NAME                    STATUS   AGE
cert-manager            Active   8d
default                 Active   9d
kube-node-lease         Active   9d
kube-public             Active   9d
kube-system             Active   9d
multi-tenant-operator   Active   8d
random                  Active   8d
logistics-dev           Active   5s
logistics-build         Active   5s
retail-dev              Active   5s
retail-build            Active   5s

5. Validate Falcon permissions#

5.1. Switch to falcon#

Set the following environment variables from the access keys generated in previous steps

  • AWS_ACCESS_KEY_ID
  • AWS_SECRET_ACCESS_KEY
  • AWS_REGION (optional)

Execute the following command to update the kubeconfig context

aws configure set region $AWS_REGION
aws configure set aws_access_key_id $AWS_ACCESS_KEY_ID
aws configure set aws_secret_access_key $AWS_SECRET_ACCESS_KEY

aws eks update-kubeconfig --name <EKS_CLUSTER_NAME> --region $AWS_REGION

5.2. Check CLI permissions#

We will now try to deploy a pod from user falcon@nordmart.com in its tenant namespace logistics-dev

$ kubectl run nginx --image nginx -n logistics-dev

pod/nginx created

And if we try the same operation in the other tenant with the same user, it will fail

$ kubectl run nginx --image nginx -n retail-dev

Error from server (Forbidden): pods is forbidden: User "falcon@nordmart.com" cannot create resource "pods" in API group "" in the namespace "retail-dev"

To be noted, falcon@nordmart.com can not list namespaces

$ kubectl get namespaces

Error from server (Forbidden): namespaces is forbidden: User "falcon@nordmart.com" cannot list resource "namespaces" in API group "" at the cluster scope

5.3. Validate Console permissions#

Navigate to MTO Console URL and Log In with the user credentials.

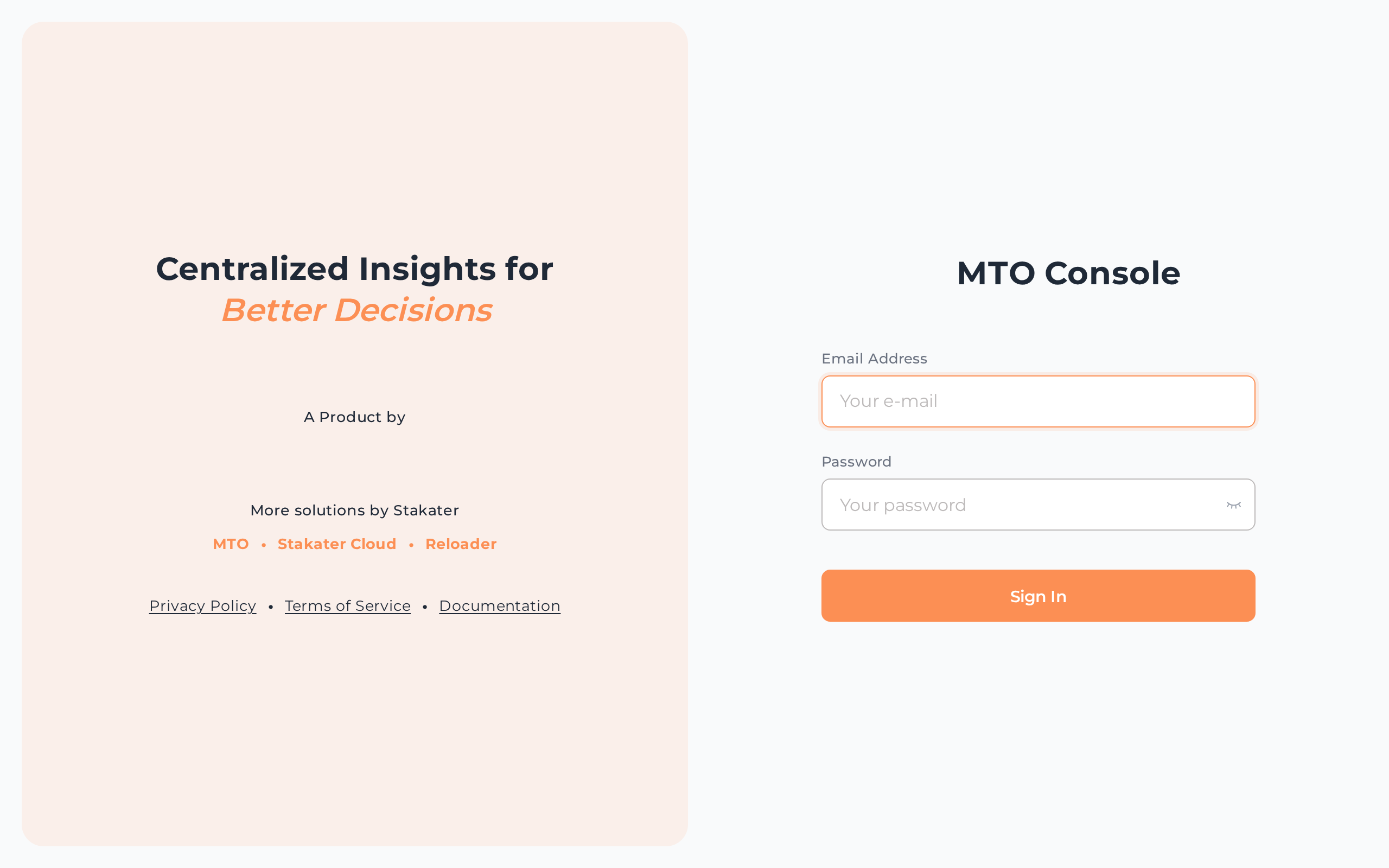

The MTO Console sign-in page

Dashboard will open after the successful login. Now you can navigate different tenants and namespaces using MTO Console

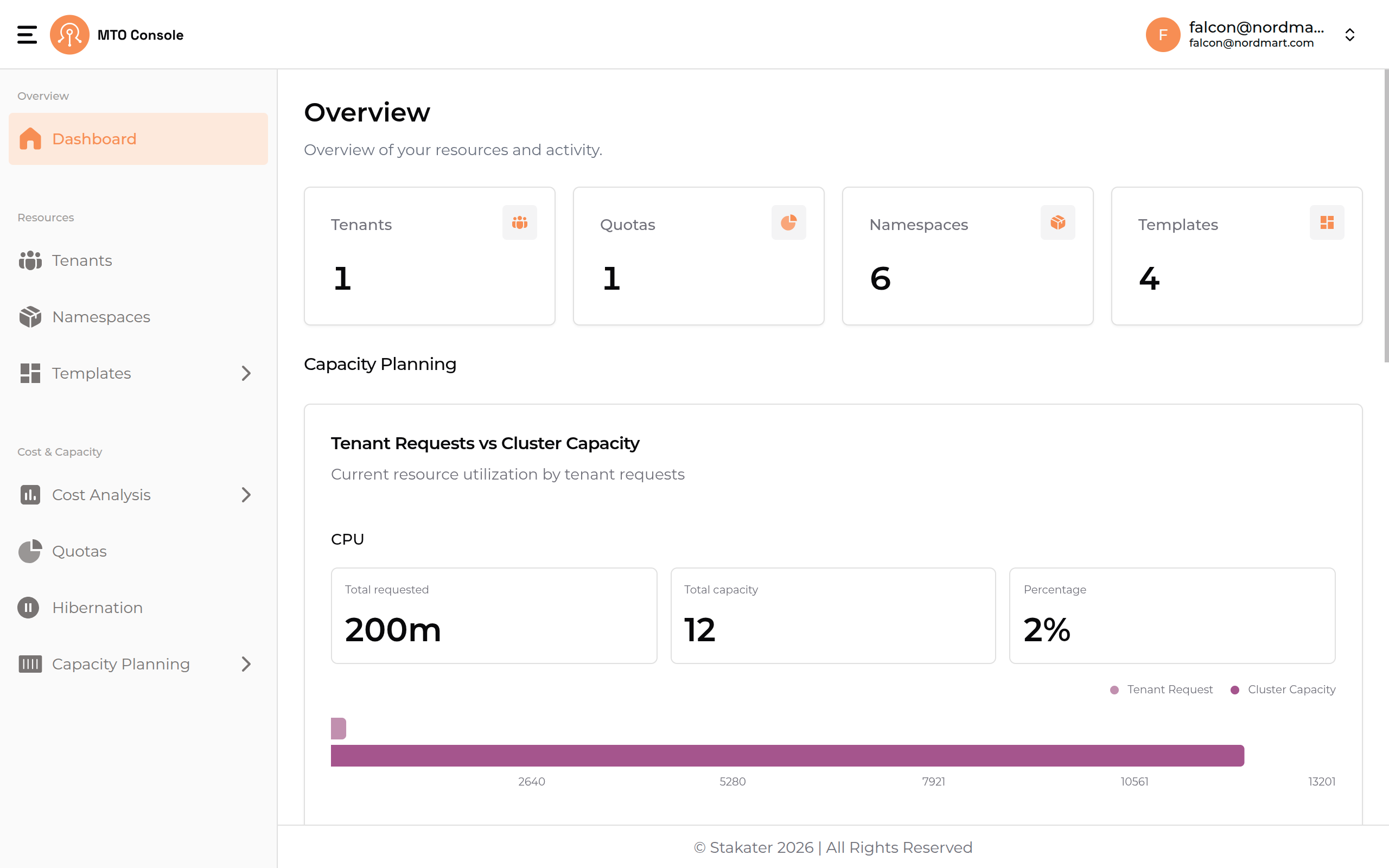

The dashboard for the falcon user

6. Validate Bear permissions#

6.1. Switch to bear#

Set the following environment variables from the access keys generated in previous steps

  • AWS_ACCESS_KEY_ID
  • AWS_SECRET_ACCESS_KEY
  • AWS_REGION (optional)

Execute the following command to update the kubeconfig context

aws configure set region $AWS_REGION
aws configure set aws_access_key_id $AWS_ACCESS_KEY_ID
aws configure set aws_secret_access_key $AWS_SECRET_ACCESS_KEY

aws eks update-kubeconfig --name <EKS_CLUSTER_NAME> --region $AWS_REGION

6.2. Check CLI permissions#

We will repeat the above operations for our retail user bear@nordmart.com as well

$ kubectl run nginx --image nginx -n retail-dev

pod/nginx created

Trying to do operations outside the scope of its own tenant will result in errors

$ kubectl run nginx --image nginx -n retail-dev

Error from server (Forbidden): pods is forbidden: User "bear@nordmart.com" cannot create resource "pods" in API group "" in the namespace "retail-dev"

To be noted, bear@nordmart.com can not list namespaces

$ kubectl get namespaces

Error from server (Forbidden): namespaces is forbidden: User "bear@nordmart.com" cannot list resource "namespaces" in API group "" at the cluster scope

6.3. Validate Console permissions#

Navigate to MTO Console URL and Log In with the user credentials.

The MTO Console sign-in page

Dashboard will open after the successful login. Now you can navigate different tenants and namespaces using MTO Console

The dashboard for the bear user
