How to Provision an OpenShift Cluster#

Learn how to provision a managed OpenShift cluster for your team via an OpenShiftCluster claim.

Sam, a senior platform engineer at ACME Corp, needs to provide a dedicated OpenShift cluster for a product team. Sam can provision a fully managed cluster with a default node pool, networking mode, and group-based access — all through a single claim.

Prerequisites#

  • Access to your organisation's project
  • The openshiftcluster.kubernetes.cloud.stakater.com API available
  • kubectl configured with your organisation project kubeconfig
  • Sufficient permissions to create OpenShiftCluster resources

What Gets Created#

When you create an OpenShiftCluster claim, the platform provisions:

  • A managed OpenShift hosted cluster with a dedicated control plane
  • A default node pool sized via a T-shirt size (small, medium, large, xlarge)
  • Keycloak OAuth integration so users can sign in with their organisation identity
  • Group-to-role bindings for cluster access (optional)
  • Bootstrap credentials, console URL, and API endpoint exposed on the claim status

In the Console#

Clusters are under Containers in the sidebar:

The OpenShift cluster list in the console

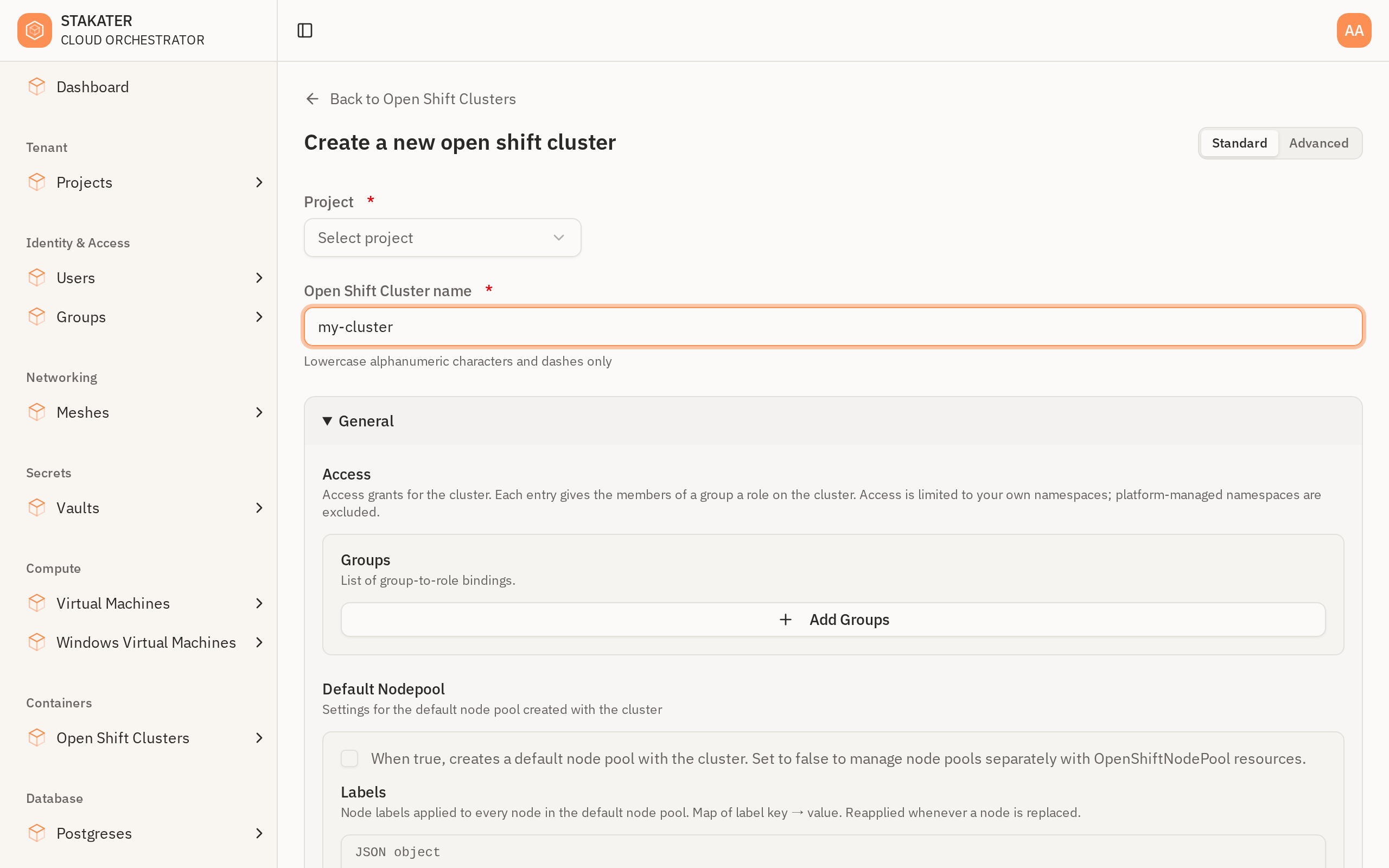

The create form opens in Standard mode, which asks for the same one field the minimal claim below does — everything else falls back to a platform default:

The Create OpenShift Cluster form in Standard mode

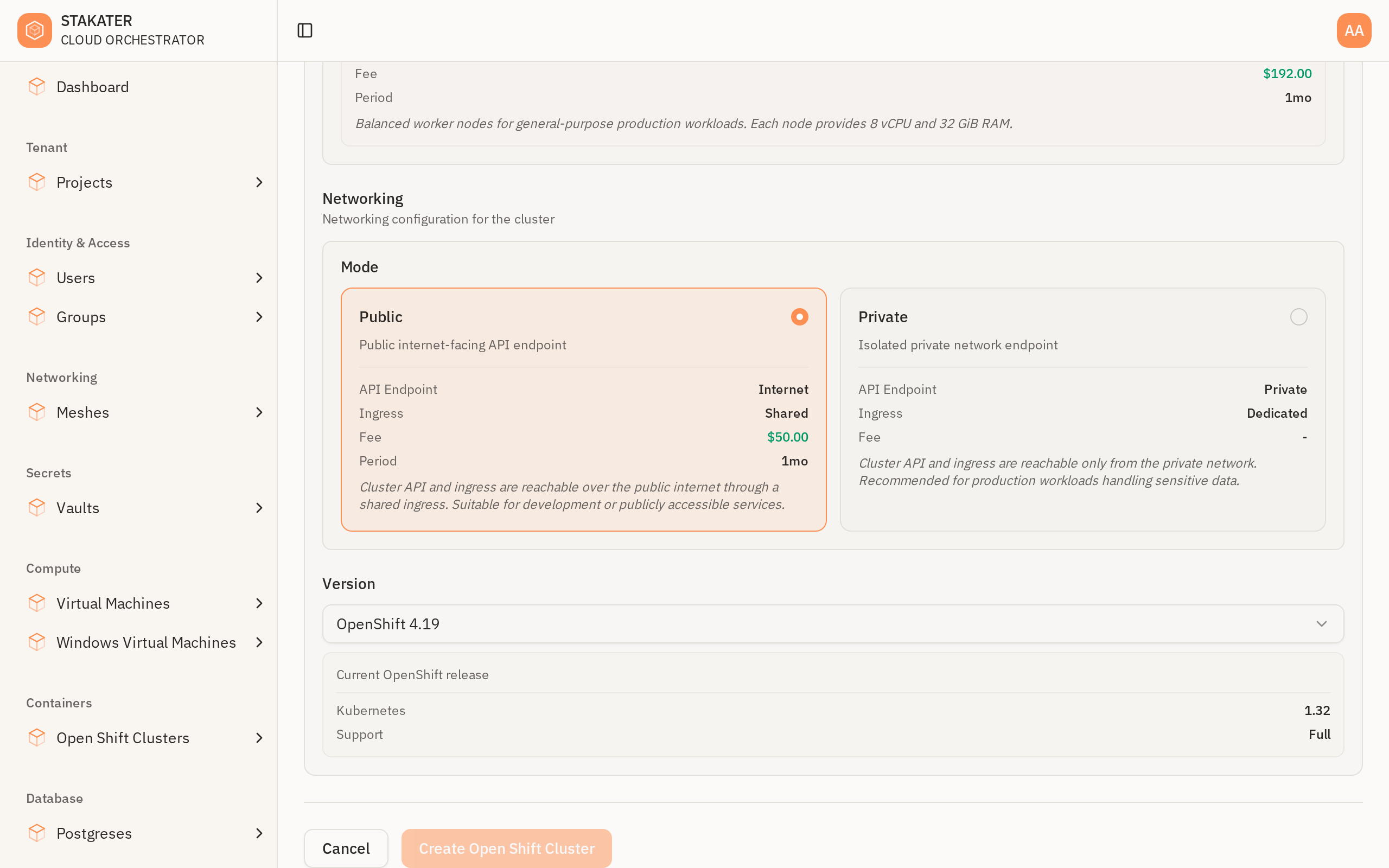

Advanced reveals the rest of the claim further down the form — node pool sizing, the networking Mode as a Public / Private choice with what each one exposes, and the OpenShift Version:

The lower part of the create form in Advanced mode, showing the networking mode choice and the version selector

Step 1: Minimal Configuration#

Create a file named cluster.yaml with only the required parameter:

apiVersion: kubernetes.cloud.stakater.com/v1
kind: OpenShiftCluster
metadata:
  name: my-cluster
  namespace: my-tenant
spec:
  parameters:
    clusterName: my-cluster

Required Parameters#

Parameter Description
parameters.clusterName Name of the OpenShift cluster (1–63 characters)

All other parameters fall back to platform-managed defaults — version 4.19, a medium node pool with 3 replicas, and public networking mode.

Step 2: Full Configuration#

For production use, customise the version, node pool size, networking mode, and access groups:

apiVersion: kubernetes.cloud.stakater.com/v1
kind: OpenShiftCluster
metadata:
  name: prod-cluster
  namespace: my-tenant
spec:
  parameters:
    clusterName: prod-cluster
    version: "4.19"
    defaultNodepool:
      enabled: true
      size: large
      replicas: 5
    networking:
      mode: public
    access:
      groups:
        - name: platform-admins
          role: customer-edit
        - name: developers
          role: customer-view
    bootstrap:
      enabled: true

Optional Parameters#

Parameter Default Description
parameters.version 4.19 OpenShift version (4.18, 4.19, or 4.20)
parameters.defaultNodepool.enabled true Create a default node pool with the cluster. Set to false to manage node pools separately via OpenShiftNodePool claims.
parameters.defaultNodepool.size medium T-shirt size for default node pool nodes: small, medium, large, or xlarge. Each size maps to a predefined CPU, memory, and root volume configuration at the platform level.
parameters.defaultNodepool.replicas 3 Number of nodes in the default node pool (1–10)
parameters.networking.mode public Network access mode for the cluster API and console: public or private
parameters.access.groups — List of Keycloak group → ClusterRole bindings (see below)
parameters.bootstrap.enabled false When true, the hosting cluster auto-installs core add-ons (Crossplane, ArgoCD, ksp-system). Enable for new clusters; leave disabled for clusters that were bootstrapped manually.

Access Grants#

Each entry under access.groups binds a Keycloak group to a ClusterRole. Members of that group receive the role across customer-eligible namespaces on the cluster (platform namespaces are excluded centrally).

Field Description
name Keycloak group name exactly as it appears in the groups claim of the OIDC token. Must be a valid Kubernetes name (RFC 1123 subdomain).
role ClusterRole to bind. Typically, customer-edit or customer-view (managed by the RBAC Permissions Operator), or a built-in such as view, edit, or admin.

Step 3: Apply the Claim#

kubectl apply -f cluster.yaml

Step 4: Monitor Provisioning#

Cluster provisioning takes several minutes. Monitor progress:

kubectl get openshiftcluster my-cluster -n my-tenant

Check the detailed status and conditions:

kubectl describe openshiftcluster my-cluster -n my-tenant

Once provisioning completes, the claim reports READY=True and SYNCED=True:

NAME         READY   SYNCED   AGE
my-cluster   True    True     15m

For a more granular view, read status.phase directly. It moves through Initializing → RegistrationPending → Ready:

kubectl get openshiftcluster my-cluster -n my-tenant -o jsonpath="{.status.phase}"

The cluster's detail page in the console shows the same phase, alongside the console URL and API endpoint that Step 5 reads out of the status:

A cluster detail page showing the phase and access grants

The console URL and API endpoint are in the Status block further down the page, shown in Advanced mode.

Step 5: Access the Cluster#

Once the cluster is ready, the claim status exposes the console URL, API endpoint, and bootstrap credentials:

kubectl get openshiftcluster my-cluster -n my-tenant -o jsonpath="{.status.consoleUrl}"
kubectl get openshiftcluster my-cluster -n my-tenant -o jsonpath="{.status.apiEndpoint}"

Users sign in through your organisation's identity provider with the roles granted via access.groups. A private cluster is reachable only over your organisation's mesh. Connect to an OpenShift Cluster walks through enrolling a device, opening the console and logging in with the CLI.

Tip

Contact your platform administrator for the list of validated OpenShift versions and the CPU/memory mappings backing each T-shirt size in your environment.
