OpenBao#

OpenBao is an identity-based secret and encryption management system: it authenticates and authorizes a client — a person or a workload — before giving it access to anything OpenBao holds.

With the Multi-Tenant Operator (MTO), cluster administrators can configure multi-tenancy within their cluster. The OpenBao extension carries that multi-tenancy into OpenBao: every tenant gets its own OpenBao namespace — with a secrets store, encryption keys and a certificate authority inside it — along with the policies and login roles that let the tenant's people and workloads reach them and nothing else.

Note that the OpenBao extension is optional.

What it saves you#

Setting a tenant up in OpenBao by hand means creating, per tenant: an OpenBao namespace; a KV secrets engine, a transit engine and a PKI certificate authority inside it; a policy for every application at every access level; a Kubernetes auth role for every ServiceAccount that logs in; and an OIDC role for every identity-provider group that should be able to sign in. All of it has to be revisited whenever a namespace is added, an application is deployed, or a team's access changes.

The extension derives all of it from the Tenant resource you already maintain, and keeps it in step as the tenant changes — creating what is now needed and removing what no longer applies.

The other half is what it removes from application teams. A developer never writes an OpenBao policy and never holds a static OpenBao credential. They declare what the application needs in annotations on its ServiceAccount, and the pod authenticates with the token Kubernetes already gives it.

What using it looks like#

Everything an application team writes fits on one screen. The ServiceAccount says what the application needs, the Deployment says which secret to deliver, and the container reads an ordinary Kubernetes Secret:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: web
  namespace: team-a-api
  annotations:
    bao.stakater.com/kv: "true"       # give this application a private secrets path
    bao.stakater.com/tier: editor     # it may read and write there
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
  namespace: team-a-api
  annotations:
    bao.stakater.com/kv-secret.db-creds: postgres   # deliver this secret
spec:
  template:
    spec:
      serviceAccountName: web
      containers:
        - name: web
          image: my/web:1.0
          envFrom:
            - secretRef:
                name: web-db-creds    # created and kept in sync for you

The OpenBao policy, the login role and the Kubernetes Secret are all created from those three annotations. The rest of this page explains what each piece does, and what else an application can ask for.

What each tenant gets#

Capability	Default	What it is
A private OpenBao namespace	on	Everything for the tenant lives under `<tenant>/`. One tenant cannot see or reach another tenant's namespace.
Secrets storage	on	A KV engine (version 2), with each application's secrets on its own path.
Encryption keys	on	A transit engine: the workload sends data and gets it back encrypted, and the key never leaves OpenBao.
Certificates	on	A PKI certificate authority per tenant, for serving TLS and for service-to-service mTLS.
Secret delivery	on	Secrets arrive as ordinary Kubernetes `Secret`s through the External Secrets Operator, so an application needs no OpenBao code.
Human login	off	Tenant members sign in through your OIDC identity provider, and their group membership decides their access.
cert-manager issuance	off	A cert-manager `Issuer` per namespace, so applications request certificates the usual way.
Cross-tenant trust	off	Opt-in, directional trust between two tenants' certificate authorities.

Engines exist for every tenant, but they grant nothing on their own: a workload gets access only once its ServiceAccount is annotated. Access is never derived from the tenant's accessControl groups, as it is in the Vault integration: workloads get access from ServiceAccount annotations, and people from identity-provider groups named after the tenant.

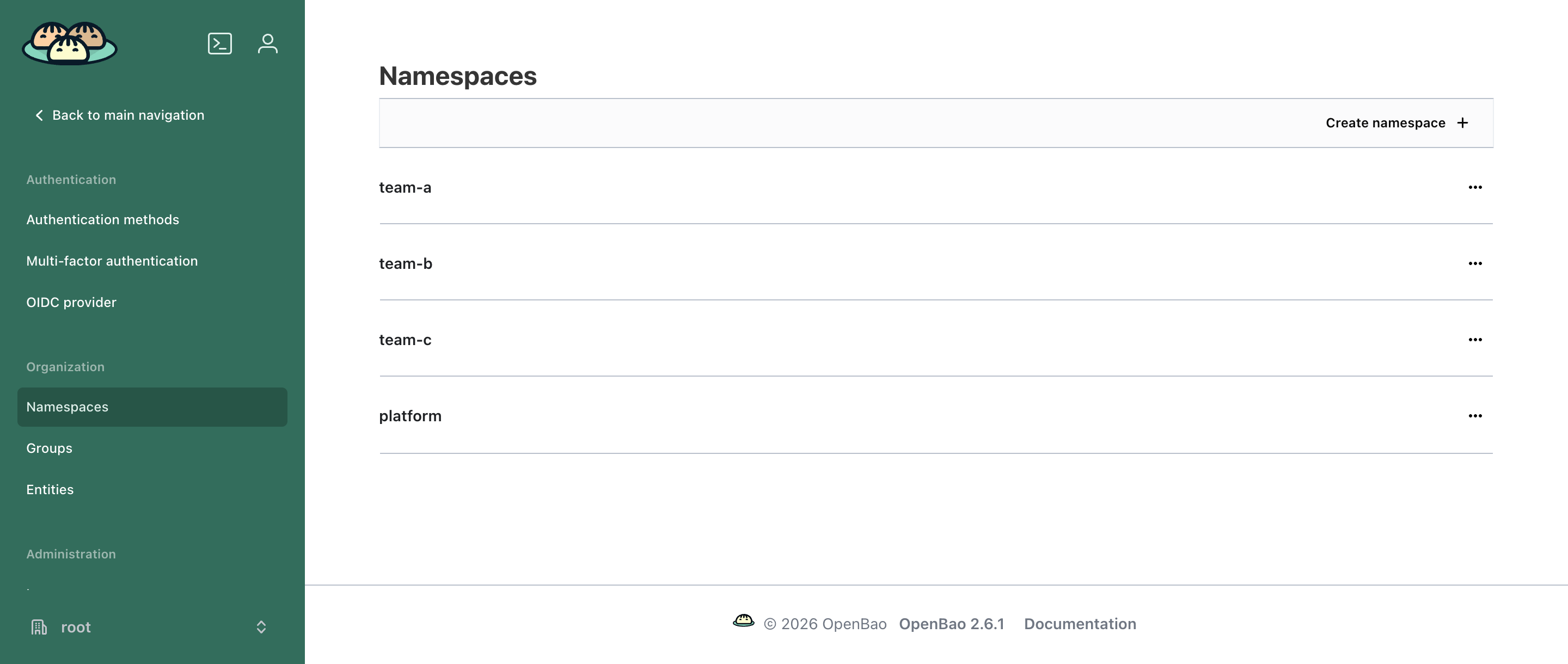

One OpenBao namespace per tenant, created with the Tenant. The platform namespace holds the certificate authority that signs each tenant's CA. A login to one tenant's namespace gives no access to any other.

How tiers map to OpenBao access#

A tier is set with bao.stakater.com/tier and applies to every engine the ServiceAccount enables.

Tier	Secrets (KV)	Encryption (transit)
`audit-read`	List names only — no values	None
`viewer`	Read, List	None
`editor`	Create, Read, Update, Patch, List	Encrypt, decrypt, rewrap
`admin`	Create, Read, Update, Patch, List, Delete	Encrypt, decrypt, rewrap, plus create, rotate and delete keys

Transit needs write access, so viewer and audit-read get none of it. Certificates are the exception to the table: a workload that opts into PKI may issue and sign at any tier. For people signing in through OIDC, the tier bounds certificate access as well.

Setting up the extension#

These steps are done once per cluster, by a platform administrator, before any tenant gets an OpenBao namespace.

Prerequisites#

An OpenBao server reachable from the cluster.
The OpenBao extension and its operator, which build on Template Operator. Contact Stakater to have them installed.
External Secrets Operator, while secrets are delivered as Kubernetes Secrets — the default.
cert-manager to issue certificates through Kubernetes, and trust-manager for trust between tenants.
An OIDC identity provider, for human login.

MTO labels each tenant namespace stakater.com/tenant=<tenant-name>, and the extension uses that label to find them.

Enabling the extension#

The extension is installed once per cluster; there is no per-tenant installation step. It watches Tenant resources cluster-wide and renders one set of configuration per tenant, which the OpenBao Config Operator then applies to OpenBao.

A tenant is picked up once its spec lists at least one namespace under withTenantPrefix or withoutTenantPrefix; add one to a skipped tenant, and it is picked up on the next render. The check reads those two fields and nothing else: sandboxes do not count, and neither do namespaces attached to the tenant by label alone — a Tenant listing none is skipped even when labelled namespaces exist for it. A skipped tenant is silent rather than failing; it has no rendered configuration to report on.

The extension is installed with Helm, and these are its values. Everything under parent is passed down to every tenant, so this is where you point the cluster at your OpenBao server and decide which features are on:

parent:
  baoServer: https://openbao.openbao.svc.cluster.local:8200
  env: dev                    # a segment in every secret path, so one server can hold several environments
  eso: enabled                # deliver secrets as Kubernetes Secrets
  certManager:
    enabled: false            # cert-manager Issuers per namespace
  sso:
    enabled: false            # human login through OIDC
    issuerUrl: ""

Values outside parent cover the cluster's own setup rather than the tenants': platformPki for the certificate authority that signs each tenant's CA, and safety for what deletion does. The certificate roles tenants issue from are install-wide too, under parent.pki.roles. What each tier may do is fixed by the extension and is not exposed as a value.

Giving the operator its own credentials#

The operator authenticates to OpenBao with its own Kubernetes ServiceAccount and stores no token anywhere. This needs a one-time bootstrap per OpenBao server: an auth mount for the cluster, a policy covering what the operator manages, and a role binding that policy to the operator's ServiceAccount.

Warning

Never give the operator OpenBao's root token. In production, also set baoServer to an https:// address, and set baoCABundle if OpenBao serves with a private CA.

Giving an application a secret#

This is the path most people take, and everything else on this page builds on it: annotate the workload, write a secret, read it from a pod. The examples use tenant team-a and its namespace team-a-api, which are created the ordinary way — see Creating a tenant. Nothing about the Tenant is OpenBao-specific.

1. Annotate the ServiceAccount#

The ServiceAccount is the identity OpenBao authenticates, so this is where access is granted. Name the engine you want, and the tier to grant it at:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: web
  namespace: team-a-api
  annotations:
    bao.stakater.com/kv: "true"
    bao.stakater.com/tier: editor

tier is required alongside any engine — an engine annotation on its own grants nothing. For ServiceAccount web, in tenant team-a's namespace team-a-api, this creates:

an OpenBao policy scoped to that application's own path, kv/data/dev/team-a-api/web/*;
a Kubernetes auth role, so the pod can trade its ServiceAccount token for a short-lived OpenBao token;
a ConfigMap named bao-config-web in team-a-api, holding every address, role and path the workload needs.

The last path segment is the application, which defaults to the ServiceAccount name. Scoping to the application rather than the namespace is what stops two workloads in one namespace reading each other's secrets.

sequenceDiagram
    participant MTO as OpenBao extension
    participant K8s as Kubernetes
    participant Bao as OpenBao
    participant Pod
    MTO->>K8s: watch ServiceAccounts annotated bao.stakater.com/*
    MTO->>Bao: create the policy and login role for this ServiceAccount
    MTO->>K8s: write the bao-config-web ConfigMap beside the workload
    Pod->>Bao: log in with its ServiceAccount token
    Bao->>K8s: verify the token
    Bao-->>Pod: short-lived token carrying the application's policy
    Pod->>Bao: read and write under its own path

2. Write the first secret#

Someone has to write the first secret, which means knowing the path to write it to. The bao-apps ConfigMap answers that — every namespace with at least one OpenBao-enabled ServiceAccount has one, listing an entry per application:

$ kubectl get cm bao-apps -n team-a-api -o jsonpath='{.data.web}'
serviceAccount: "web"
tier: "editor"
engines: kv
kvPath: kv/data/dev/team-a-api/web/

Once a Deployment starts requesting secrets, a requestedSecrets line joins the entry. The _namespace entry carries the namespace's shared folder.

A person signed in through OIDC, or a pipeline with its own credentials, writes to that path:

bao login -method=oidc -namespace=team-a role=sso-team-a-admin
bao kv put -mount=kv dev/team-a-api/web/postgres username=app password=s3cr3t

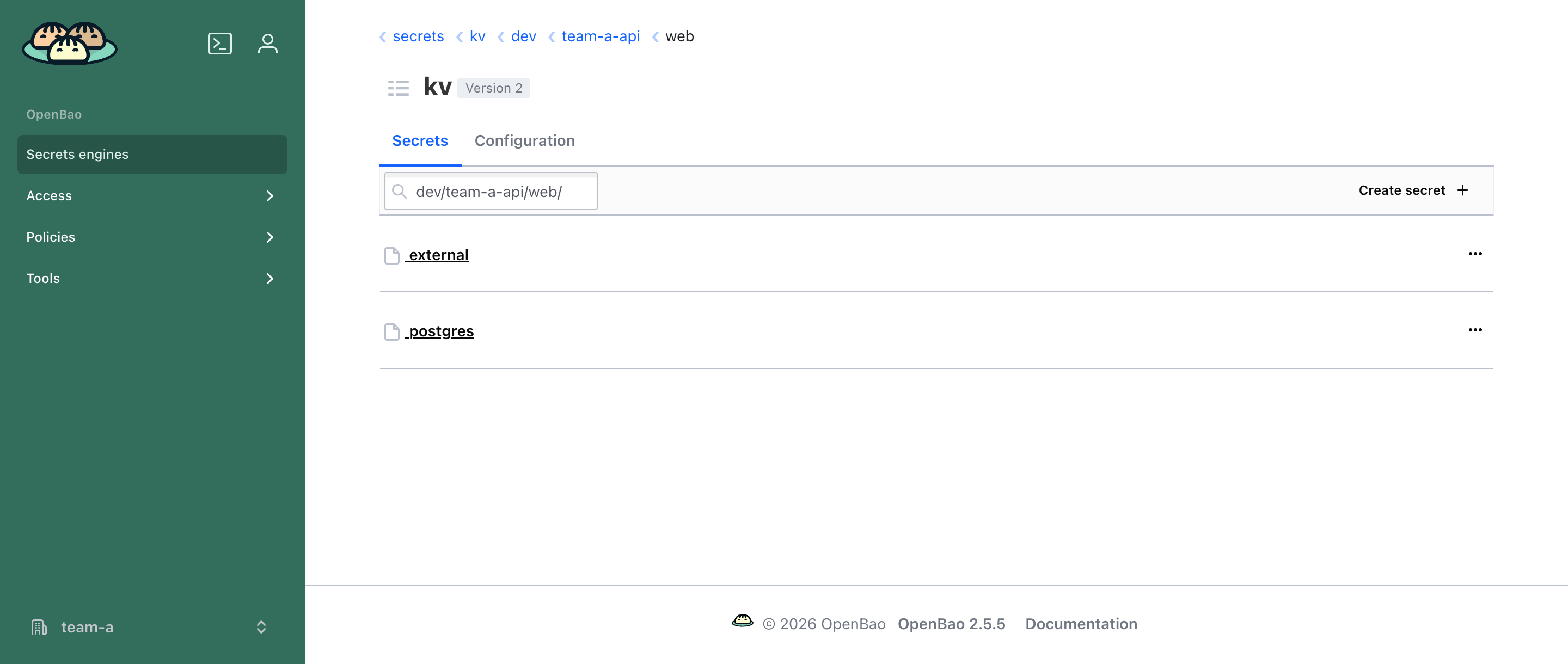

In the OpenBao web UI, open the kv mount and browse dev/team-a-api/web/. The /data/ segment in kvPath is an API artefact and does not appear in the UI.

The breadcrumb is the path from bao-apps: the kv mount, then <env>/<namespace>/<app>/. Everything under it belongs to that one application.

3. Read the secret from the pod#

Load the ConfigMap into the pod, and everything the workload needs is in its environment:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
  namespace: team-a-api
spec:
  template:
    spec:
      serviceAccountName: web
      containers:
        - name: web
          image: my/web:1.0
          envFrom:
            - configMapRef:
                name: bao-config-web

export VAULT_TOKEN=$(bao write -field=token auth/kubernetes/login \
  role="${VAULT_K8S_ROLE}" \
  jwt=@/var/run/secrets/kubernetes.io/serviceaccount/token)

bao read "${VAULT_KV_APP_PATH}postgres"

The ConfigMap always carries the server address, the tenant's OpenBao namespace, the login role and the application's own paths:

Key	Example	Meaning
`VAULT_ADDR`	`https://openbao.openbao:8200`	OpenBao server URL
`VAULT_NAMESPACE`	`team-a/`	the tenant's OpenBao namespace
`VAULT_K8S_ROLE`	`team-a-team-a-api-web`	the login role for this ServiceAccount
`VAULT_KV_APP_PATH`	`kv/data/dev/team-a-api/web/`	where this application's secrets live
`VAULT_KV_SHARED_OUT_PATH`	`kv/data/dev/_shared/from-team-a-api/`	the namespace's shared folder

Read these from the ConfigMap rather than copying them into your manifests — they differ per tenant and per application. Transit and PKI add their own keys when those engines are enabled.

Note

Every engine is reached this same way: one login with the ServiceAccount token, then the paths from the ConfigMap. Once you know it, transit and PKI need nothing new.

Delivering secrets as Kubernetes Secrets#

Most applications should not call OpenBao at all. With the External Secrets Operator (ESO), which is on by default, the extension wires up delivery: ESO logs into OpenBao for the workload, fetches the secret and keeps an ordinary Kubernetes Secret in sync with it.

For each ServiceAccount you give a tier, the extension creates a SecretStore named <serviceaccount>-bao that logs in with the same role as the workload. You then request secrets with annotations on the Deployment — each one produces one Kubernetes Secret, named <serviceaccount>-<name>:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
  namespace: team-a-api
  annotations:
    bao.stakater.com/kv-secret.db-creds: postgres        # the whole secret
    bao.stakater.com/kv-secret.api-key: external#token   # just the "token" field
spec:
  template:
    spec:
      serviceAccountName: web
      containers:
        - name: web
          image: my/web:1.0
          envFrom:
            - secretRef:
                name: web-db-creds

The value is <leaf>[#<field>]: with #<field>, only that field is copied into the Secret; without it, every field becomes a key.

sequenceDiagram
    participant MTO as OpenBao extension
    participant ESO as External Secrets Operator
    participant Bao as OpenBao
    participant K8s as Kubernetes
    MTO->>ESO: SecretStore web-bao, ExternalSecret web-db-creds
    ESO->>Bao: log in with the workload's own role
    Bao-->>ESO: the secret at kv/data/dev/team-a-api/web/postgres
    ESO->>K8s: create or update Secret web-db-creds
    Note over ESO,Bao: repeats every refresh interval — 1h by default

The workload mounts the Secret and never learns that OpenBao exists. Two annotations cover the sharing cases below: bao.stakater.com/kv-subscribe.<name> reads from a sibling namespace's shared folder, and bao.stakater.com/kv-import.<name> reads from another tenant.

Note

Every refresh is an OpenBao login. The default interval is one hour, and every workload logs in on it, so shortening the interval multiplies the load on OpenBao by the number of workloads.

Sharing is opt-in on both sides, and the direction is fixed. There are three scopes, and the path tells you which one you are in:

flowchart TB
  subgraph T["team-a/ — the tenant's own OpenBao namespace"]
    A["kv/data/dev/team-a-api/web/<br/><b>private</b> to the web application"]
    B["kv/data/dev/_shared/from-team-a-api/<br/><b>written</b> by team-a-api,<br/><b>read</b> by namespaces that subscribe"]
  end
  subgraph S["shared/ — the cross-tenant namespace"]
    C["kv/data/dev/from-team-a/to-team-b/<br/><b>written</b> by team-a, <b>read</b> by team-b"]
  end

Between namespaces in one tenant#

Each namespace owns a shared folder that only it can write to; other namespaces in the same tenant subscribe to read it. The folder is named after the writer, so a reader always knows where a value came from.

An editor or admin workload writes to its own folder with no extra annotation — the path is already in its ConfigMap as VAULT_KV_SHARED_OUT_PATH. The reader opts in:

# a ServiceAccount in team-a-worker, reading what team-a-api shared
metadata:
  annotations:
    bao.stakater.com/tier: viewer
    bao.stakater.com/kv-subscribe-ns: team-a-api

Subscribing only ever grants read, so no namespace can write into another namespace's folder. You can only subscribe to namespaces in your own tenant.

Between tenants#

Cross-tenant secrets live in neither tenant. They go to the shared/ OpenBao namespace, and both sides must opt in:

# a team-a ServiceAccount — may write to team-b
bao.stakater.com/kv-export-tenant: team-b

# a team-b ServiceAccount — may read what team-a sent
bao.stakater.com/kv-import-tenant: team-a

Exporting grants nothing until the other tenant imports, and removing either annotation cuts the link.

Encrypting data#

Add bao.stakater.com/transit: "true" alongside an editor or admin tier, and the workload gets three encryption keys: one private to the application, one shared by every opted-in application in its namespace, and one shared across the tenant. Keys rotate every 90 days by default and never leave OpenBao.

The ConfigMap carries each key's encrypt and decrypt endpoints, so encrypting is one call:

curl -s --request POST \
  --header "X-Vault-Token: ${VAULT_TOKEN}" \
  --header "X-Vault-Namespace: ${VAULT_NAMESPACE}" \
  --data '{"plaintext":"'"$(echo -n 'hello' | base64)"'"}' \
  "${VAULT_ADDR}/v1/${VAULT_TRANSIT_APP_ENCRYPT}"

Two workloads that must exchange encrypted data use the tenant-shared key on both sides. Across tenants, transit-export-tenant and transit-import-tenant create one key per pair: the exporter may encrypt and decrypt, the importer may only decrypt.

Issuing certificates#

Each tenant gets its own certificate authority. By default, it is an intermediate signed by a cluster-wide platform CA, so every tenant's certificates chain back to a single anchor. Trusting another tenant is still opt-in — the anchor alone grants nothing.

flowchart LR
  R["Platform CA<br/>self-signed, or signed by<br/>your own offline root"] --> A["team-a<br/>intermediate CA"]
  R --> B["team-b<br/>intermediate CA"]
  A --> AL["certificates for<br/>*.team-a-api.svc.cluster.local"]
  B --> BL["certificates for<br/>*.team-b-prod.svc.cluster.local"]

The shipped role issues certificates for *.svc.cluster.local names in the tenant's own namespaces, valid for 7 days.

Through cert-manager, which is the recommended route: turn on parent.certManager.enabled and each opted-in namespace gets an Issuer named after the tenant's certificate role. Applications then request certificates the normal way, and the private key is generated in the cluster and never sent to OpenBao:

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: web-tls
  namespace: team-a-api
spec:
  secretName: web-tls
  issuerRef:
    name: team-a-svc
    kind: Issuer
  commonName: web.team-a-api.svc.cluster.local   # required
  dnsNames:
    - web.team-a-api.svc.cluster.local

Note

commonName is not optional. A Certificate carrying only dnsNames is refused at signing time; it sits at Ready=False, and the reason appears on the CertificateRequest, not on the Certificate.

Directly from OpenBao, with bao.stakater.com/pki: "true" on the ServiceAccount, the ConfigMap offers two endpoints: VAULT_PKI_SIGN_PATH, where you send a certificate signing request and the private key never leaves the pod, and VAULT_PKI_ISSUE_PATH, where OpenBao generates the key and returns it over the network. Prefer signing.

Namespaces in one tenant share a CA, so they already trust one another. Across tenants, trust is opt-in and decided by the consuming side: bao.stakater.com/pki-trust-tenant to trust a peer's server certificates when you call it, and bao.stakater.com/pki-allow-tenant to accept that peer as a client calling you. Accepting implies trusting; trusting never implies accepting.

With sso.enabled, people sign in to OpenBao through your identity provider and their access follows their groups. For each tier, the extension creates a login role bound to an identity-provider group named <tenant>-<tier>s by default — so members of team-a-admins get the admin tier in team-a. Unlike a workload, which is confined to one namespace, a signed-in person gets that tier across the whole tenant.

sequenceDiagram
    participant MTO as OpenBao extension
    participant Bao as OpenBao
    participant IdP as OIDC provider
    participant User as Tenant member
    MTO->>Bao: create one OIDC login role per tier, bound to an IdP group
    User->>Bao: bao login -method=oidc -namespace=team-a
    Bao->>IdP: authenticate and read the group claim
    Bao-->>User: token carrying that tier's policies
    User->>Bao: read and write across the tenant

bao login -method=oidc -namespace=team-a role=sso-team-a-admin

Sessions are short — 15 minutes by default, 1 hour at most — because removing someone from a group in the identity provider does not revoke tokens already issued.

Annotation reference#

The keys follow one grammar, so you can work out a name instead of looking it up:

bao.stakater.com/<engine> — turn an engine on: kv, transit, pki.
bao.stakater.com/<engine>-<verb>-<scope> — a sharing grant, always on the ServiceAccount. export and import cross a tenant boundary, subscribe stays inside one tenant. Values are comma-separated lists.
bao.stakater.com/<engine>-<request>.<name> — a delivery request, always on the Deployment. <name> becomes the Kubernetes Secret.
tier and app carry no engine: they qualify the identity itself.

Grants go on the ServiceAccount, because that is the identity OpenBao authenticates. Requests go on the Deployment, because that is the workload receiving the secret. A key on the wrong object is reported as an error beside the workload rather than ignored.

On the ServiceAccount:

Annotation	Engine	What it does
`bao.stakater.com/tier`	all	Required alongside any engine. `audit-read`, `viewer`, `editor` or `admin`.
`bao.stakater.com/kv`	KV	`"true"` — read and write this application's own secrets path.
`bao.stakater.com/transit`	Transit	`"true"` — use the application, namespace and tenant encryption keys.
`bao.stakater.com/pki`	PKI	`"true"` — issue certificates directly from OpenBao.
`bao.stakater.com/app`	KV, Transit	Optional. Names the application that owns these secrets; defaults to the ServiceAccount name.
`bao.stakater.com/kv-subscribe-ns`	KV	Read the shared folders of other namespaces in the same tenant.
`bao.stakater.com/kv-export-tenant`	KV	Share secrets out to other tenants.
`bao.stakater.com/kv-import-tenant`	KV	Read secrets other tenants shared in.
`bao.stakater.com/transit-export-tenant`	Transit	Share an encryption key out to other tenants.
`bao.stakater.com/transit-import-tenant`	Transit	Use an encryption key another tenant shared in.
`bao.stakater.com/pki-allow-tenant`	PKI	Accept these tenants as inbound mTLS clients. Implies trusting their CA.
`bao.stakater.com/pki-trust-tenant`	PKI	Trust these tenants' server certificates when calling them, without accepting them inbound.

On the Deployment — each one creates a Kubernetes Secret named <serviceaccount>-<name>:

Annotation	Reads from	Needs, on the ServiceAccount
`bao.stakater.com/kv-secret.<name>`	this application's own path	`kv`
`bao.stakater.com/kv-subscribe.<name>`	a sibling namespace's shared folder	`kv-subscribe-ns`
`bao.stakater.com/kv-import.<name>`	another tenant's shared space	`kv-import-tenant`

Values take the form <leaf>[#<field>] — with a field, only that field is copied into the Secret; without one, every field becomes a key. The subscribe and import forms are prefixed with the source: team-a-api/postgres and team-a/creds.

Operating it#

Checking what was created#

For tenant team-a, the resources the extension renders:

kubectl -n openbao-config-operator-system get \
  obns,obse,obam,obkac,obkar,obp,obtk,obpkic,obpkir \
  -l templates.v2.stakater.com/instance=openbao-config-mto-team-a

One read covers the health of every tenant at once:

kubectl -n openbao-config-operator-system \
  get templateinstances.templates.v2.stakater.com openbao-config-mto-parent \
  -o jsonpath='{.status.outputs.tiReady}' | jq .

Anything other than True for a tenant means its configuration did not reach OpenBao. The neighbouring tiRendered and tiApplied fields say whether it failed to render or was refused on apply.

When a workload cannot log in#

The ServiceAccount needs both an engine annotation and bao.stakater.com/tier. An engine on its own grants nothing.
Annotation values are strings — "true" must be quoted, or Kubernetes rejects it as a boolean.
The bao-config-<serviceaccount> ConfigMap appears only once the ServiceAccount is annotated. If it is missing, the annotation has not been picked up.
Grants go on the ServiceAccount and secret requests go on the Deployment. A key on the wrong object is reported as an error beside the workload rather than silently ignored.
If a whole tenant is missing, check its Tenant lists a namespace under withTenantPrefix or withoutTenantPrefix — a tenant listing none is skipped silently — and that its namespaces carry stakater.com/tenant=<tenant-name>.

What deletion does#

Deleting a resource does not destroy the data behind it, by default.

What is deleted	What happens
An engine, an OpenBao namespace or an auth mount	Retained. The OpenBao object and everything stored under it survives; re-creating an identical resource adopts it back.
A policy, login role, group or alias	Deleted, so the access it granted is revoked.

The practical consequence: deleting an MTO Tenant does not destroy its OpenBao data. Its secrets, encryption keys and certificate authority are retained while its policies and login roles are removed, so access closes, but the data is recoverable by re-creating the tenant.

Warning

To remove a tenant's data for real, delete the tenant and then, with an OpenBao administrator token, delete its OpenBao namespace — bao namespace delete <tenant> cascades through everything inside it.

Removing an annotation from a ServiceAccount revokes what it granted, so access follows the workload definition rather than lingering in OpenBao.

Reference#

OpenBao Config Operator — the operator that applies this configuration to OpenBao.
Tenant — the resource this extension reads.

OpenBao#

What it saves you#

What using it looks like#

What each tenant gets#

How tiers map to OpenBao access#

Setting up the extension#

Prerequisites#

Enabling the extension#

Giving the operator its own credentials#

Giving an application a secret#

1. Annotate the ServiceAccount#

2. Write the first secret#

3. Read the secret from the pod#

Delivering secrets as Kubernetes Secrets#

Sharing secrets#

Between namespaces in one tenant#

Between tenants#

Encrypting data#

Issuing certificates#

Human login#

Annotation reference#

Operating it#

Checking what was created#

When a workload cannot log in#

What deletion does#

Reference#
