On OpenShift#

MTO is RedHat Certified operator available on the Red Hat MarketPlace.

This document contains instructions on installing, uninstalling and configuring Multi Tenant Operator on OpenShift.

OpenShift OperatorHub UI
CLI/GitOps
Enabling Console
Uninstall

Requirements#

An OpenShift cluster

Installing via OperatorHub UI#

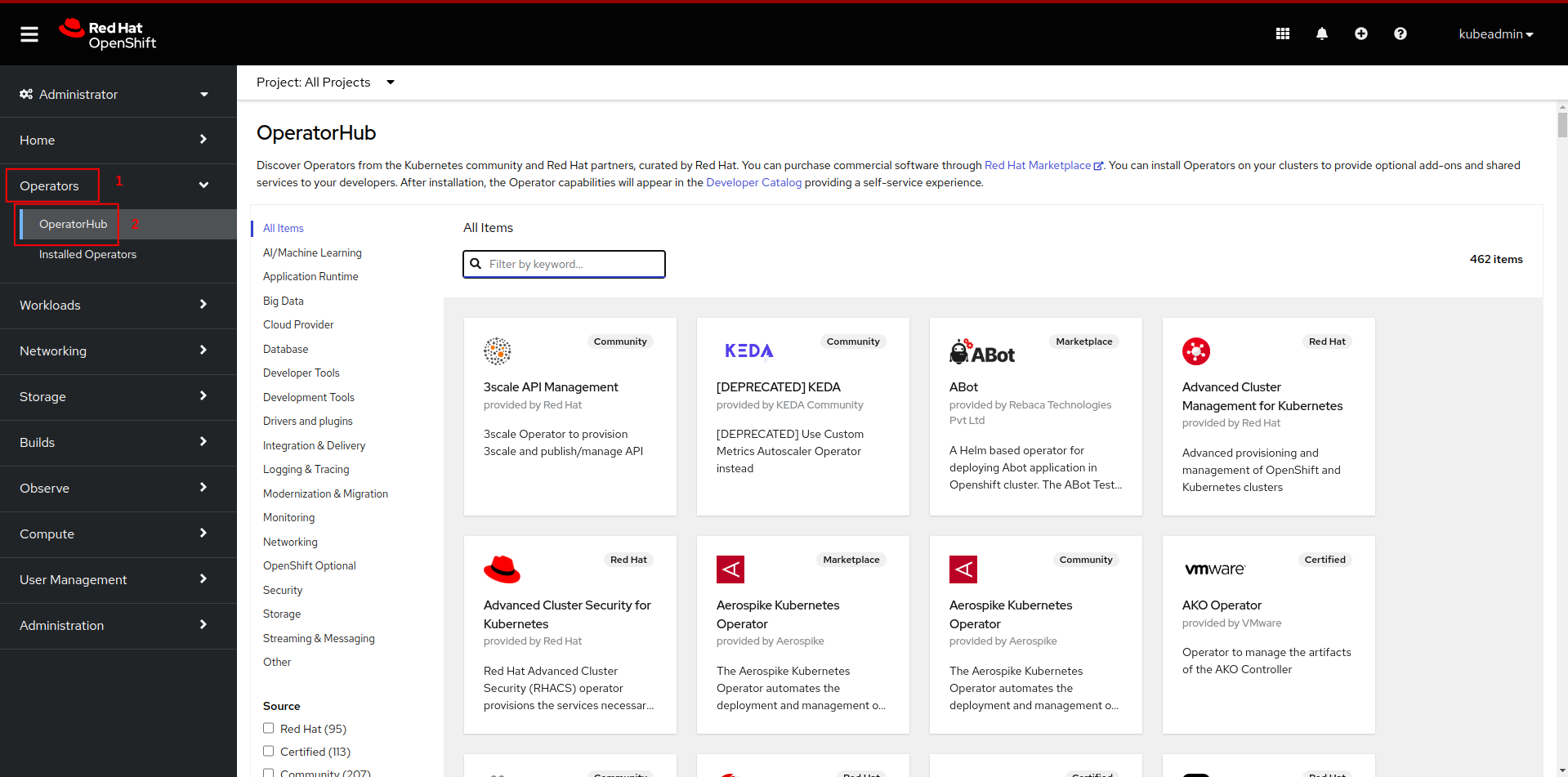

After opening OpenShift console click on Operators, followed by OperatorHub from the side menu

Now search for Multi Tenant Operator and then click on Multi Tenant Operator tile

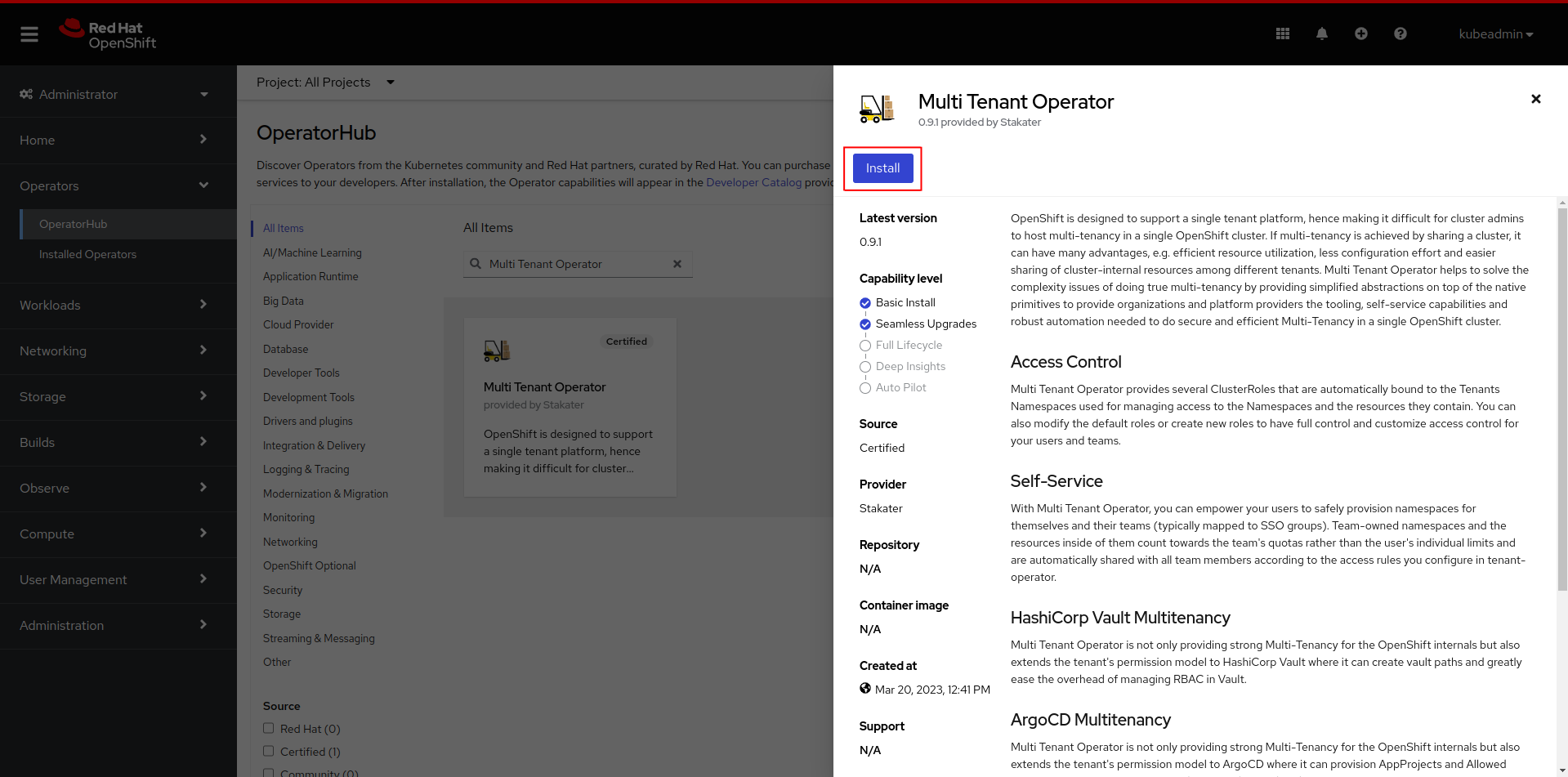

Click on the install button

Select Updated channel. Select multi-tenant-operator to install the operator in multi-tenant-operator namespace from Installed Namespace dropdown menu. After configuring Update approval click on the install button.

Note: Use stable channel for seamless upgrades. For Production Environment prefer Manual approval and use Automatic for Development Environment

Wait for the operator to be installed

Once successfully installed, MTO will be ready to enforce multi-tenancy in your cluster

Note: MTO will be installed in multi-tenant-operator namespace.

Installing via CLI OR GitOps#

Create namespace multi-tenant-operator

oc create namespace multi-tenant-operator
namespace/multi-tenant-operator created

Create an OperatorGroup YAML for MTO and apply it in multi-tenant-operator namespace.

oc create -f - << EOF
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: tenant-operator
  namespace: multi-tenant-operator
EOF
operatorgroup.operators.coreos.com/tenant-operator created

Create a subscription YAML for MTO and apply it in multi-tenant-operator namespace. To enable console set .spec.config.env[].ENABLE_CONSOLE to true. This will create a route resource, which can be used to access the Multi-Tenant-Operator console.

oc create -f - << EOF
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: tenant-operator
  namespace: multi-tenant-operator
spec:
  channel: stable
  installPlanApproval: Automatic
  name: tenant-operator
  source: certified-operators
  sourceNamespace: openshift-marketplace
  startingCSV: tenant-operator.v0.10.0
EOF
subscription.operators.coreos.com/tenant-operator created

Note: To bring MTO via GitOps, add the above files in GitOps repository.

After creating the subscription custom resource open OpenShift console and click on Operators, followed by Installed Operators from the side menu

Wait for the installation to complete

Once the installation is complete click on Workloads, followed by Pods from the side menu and select multi-tenant-operator project

Once pods are up and running, MTO will be ready to enforce multi-tenancy in your cluster

For more details and configurations check out IntegrationConfig.

Enabling Console#

To enable console GUI for MTO, go to Search -> IntegrationConfig -> tenant-operator-config and make sure the following fields are set to true:

spec:
  components:
    console: true
    showback: true

Note: If your InstallPlan approval is set to Manual then you will have to manually approve the InstallPlan for MTO console components to be installed.

Manual Approval#

Open OpenShift console and click on Operators, followed by Installed Operators from the side menu.

Now click on Upgrade available in front of mto-opencost or mto-prometheus.

Now click on Preview InstallPlan on top.

Now click on Approve button.

Now the InstallPlan will be approved, and MTO console components will be installed.

Uninstall via OperatorHub UI#

You can uninstall MTO by following these steps:

Decide on whether you want to retain tenant namespaces and ArgoCD AppProjects or not. If yes, please set spec.onDelete.cleanNamespaces to false for all those tenants whose namespaces you want to retain, and spec.onDelete.cleanAppProject to false for all those tenants whose AppProject you want to retain. For more details check out onDelete
After making the required changes open OpenShift console and click on Operators, followed by Installed Operators from the side menu

Now click on uninstall and confirm uninstall.

Now the operator has been uninstalled.
Optional: you can also manually remove MTO's CRDs and its resources from the cluster.

Notes#

For details on licensing of MTO please refer Pricing.
For more details on how to use MTO please refer Tenant tutorial.
For details on how to extend your MTO manager ClusterRole please refer extend-default-clusterroles.
