How to Create a Mesh#

Learn how to provision a private mesh network for your organisation and enrol your first device.

Emma, a developer at ACME Corp, wants her team's laptops to reach internal services — a Vault, staging APIs, databases — without VPN appliances or public endpoints. A Mesh gives every enrolled device an encrypted, peer-to-peer network governed by her organisation's single sign-on.

Prerequisites#

  • A Project already created
  • The mesh.network.cloud.stakater.com API available
  • kubectl configured with your project kubeconfig
  • The NetBird client on any device you want to enrol

Your organisation may already include a Mesh by default — check with your organisation administrator before creating one.

What Gets Created#

When you create a Mesh claim, the platform provisions:

  • A private mesh network for your organisation — management, signalling, and relay infrastructure
  • A web dashboard for managing peers, groups, and access policies, behind your organisation's single sign-on
  • Automatic publishing of platform services (such as a Vault) to Mesh peers, with publicly-trusted TLS

Step 1: Define a Mesh Claim#

Create a file named mesh.yaml:

apiVersion: network.cloud.stakater.com/v1
kind: Mesh
metadata:
  name: my-mesh
spec:
  parameters: {}

That's the entire claim — the Mesh takes no user-tunable fields.

Step 2: Apply the Claim#

kubectl apply -f mesh.yaml

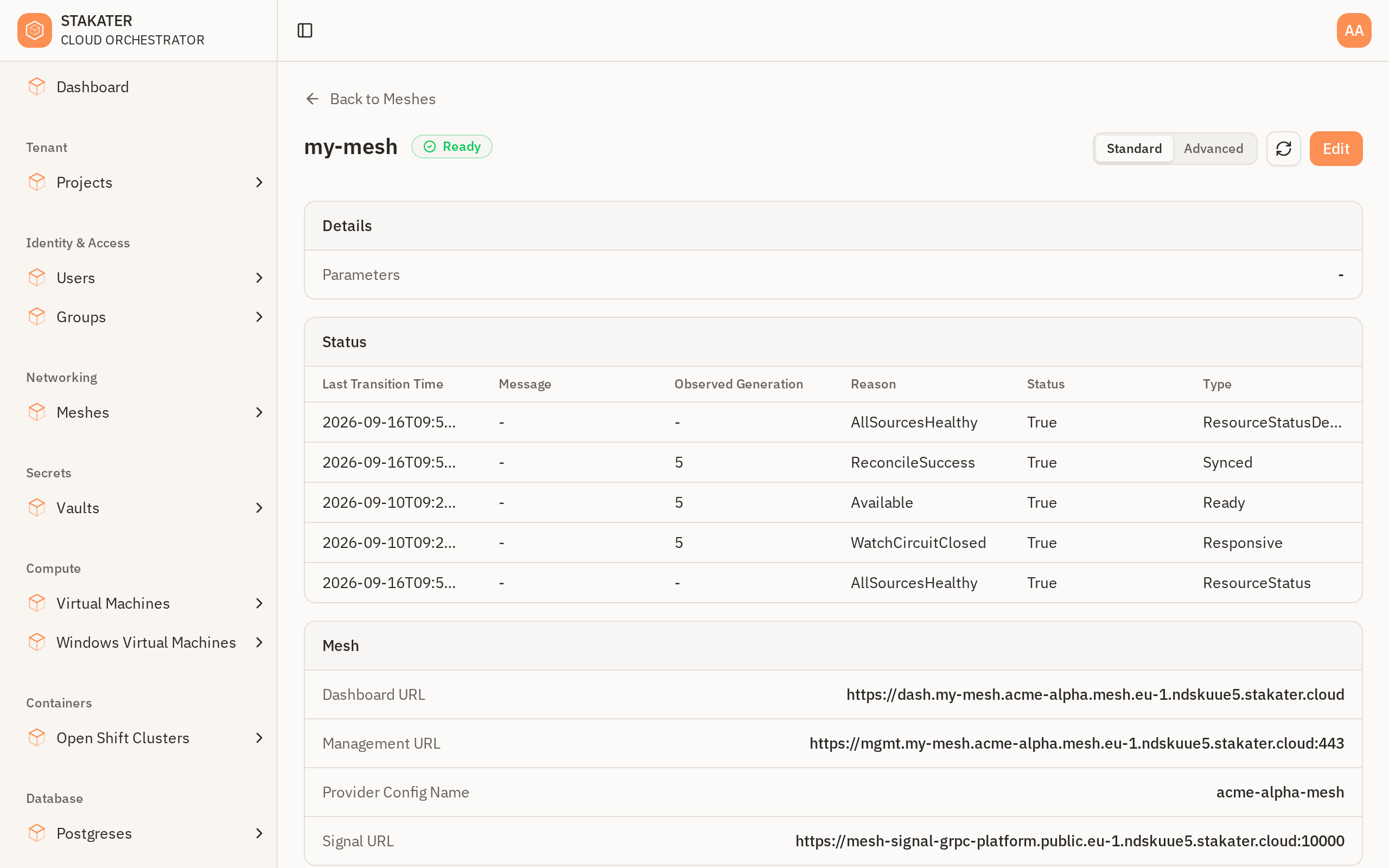

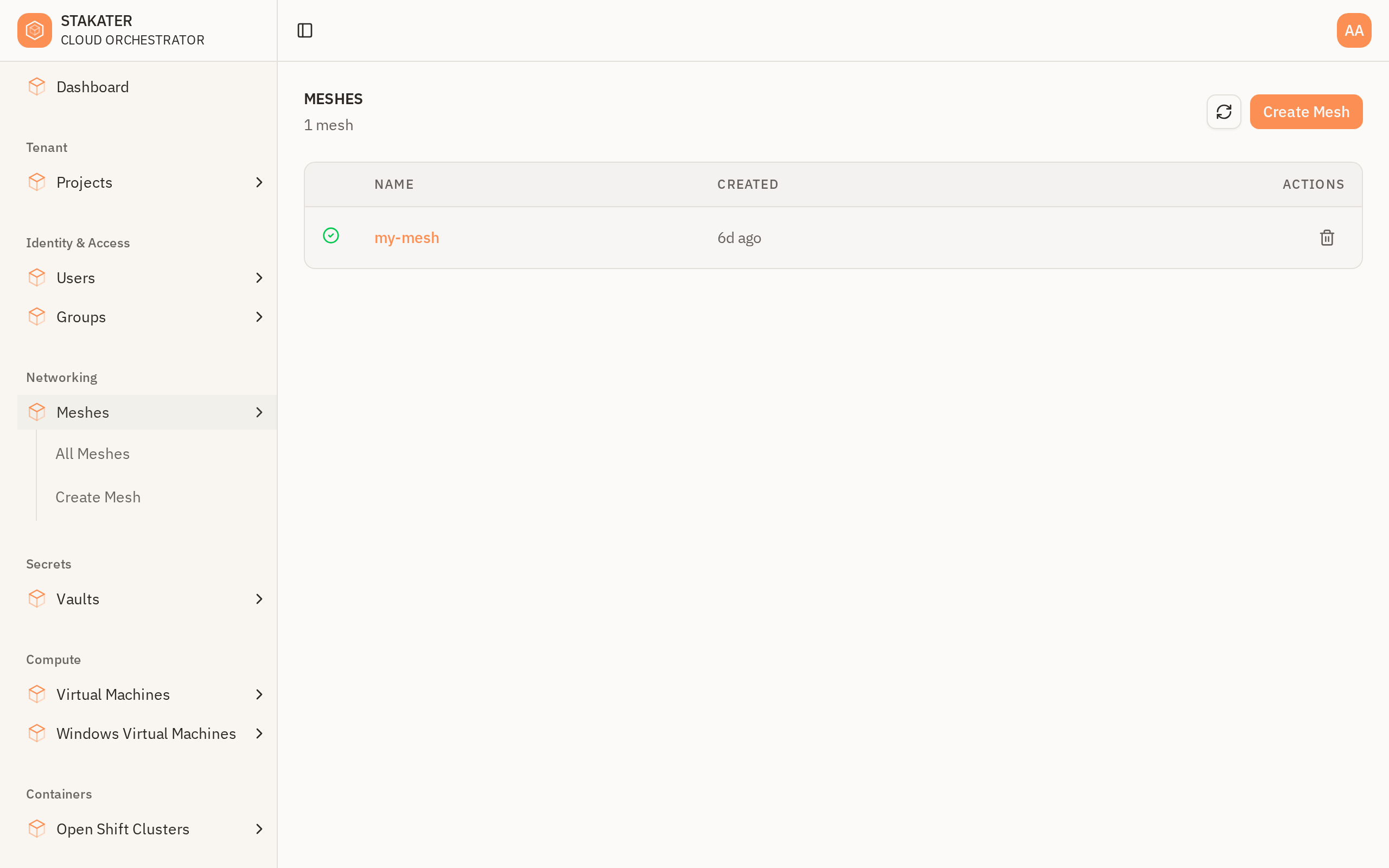

Step 3: Verify the Mesh#

kubectl get mesh my-mesh

Wait for READY: True.

Step 4: Open the Dashboard#

Open your organisation's Mesh dashboard from the SCO console and sign in with your organisation account. From here you manage peers, define groups, write access policies, and generate setup keys.

Step 5: Enrol a Device#

Install the NetBird client on a laptop. In the dashboard, open Add Peer and copy the enrolment command it shows — it already includes your organisation's management URL:

netbird up --management-url=<your organisation's management URL>

This opens a browser for single sign-on — leave the command running until the browser flow completes, and use a private window if you need to enrol as a different user than your current browser session. See One Identity Across Your Organisation for enrolment caveats and multi-account profiles. After registration the device appears in the dashboard and can be assigned to groups.

Step 6: Reach Services over the Mesh#

  • Platform services are published automatically. With a Vault in your organisation, an enrolled laptop reaches it at https://bao.<organisation>.mesh.<cluster-domain> with a publicly-trusted certificate.
  • Your own services can be advertised to Mesh peers with a NetbirdRouter.
