How GitOps Works#

GitOps is the delivery model at the heart of KubeStack+. The entire state of your platform — applications, environments, and cluster configuration — is declared in Git. ArgoCD watches those repositories and continuously reconciles the cluster to match what Git says it should be.

Why Git as the source of truth#

  • Full audit trail — every change is a commit with an author, timestamp, and diff. No undocumented cluster edits.
  • Easy rollback — reverting to a previous state is a Git revert, not a manual cluster operation.
  • Consistent environments — all environments are configured from the same source. Drift is detected and corrected automatically.
  • Familiar workflow — teams work in pull requests, code reviews, and branch strategies they already know.

Core principles#

  • Git is the only source of truth for both infrastructure and application state.
  • Application source code and deployment manifests live in separate repositories.
  • Deployment manifests are standard Kubernetes YAML — nothing more than kubectl apply is needed to apply them manually.
  • Helm is used to express the differences between environments (image tags, replica counts, resource limits).

GitOps vs CI#

CI (building and testing your code) is a separate concern from GitOps (deploying it). A typical flow looks like this:

  1. A developer merges a pull request in the application repository.
  2. CI builds a container image, tags it with a version, and pushes it to Harbor.
  3. CI (or a human) opens a pull request in the apps GitOps repository updating the image tag.
  4. Once that PR merges, ArgoCD detects the change and deploys the new version.

KubeStack+ does not include a CI pipeline. Teams bring their own — GitHub Actions, GitLab CI, or anything that can push an image and open a PR.

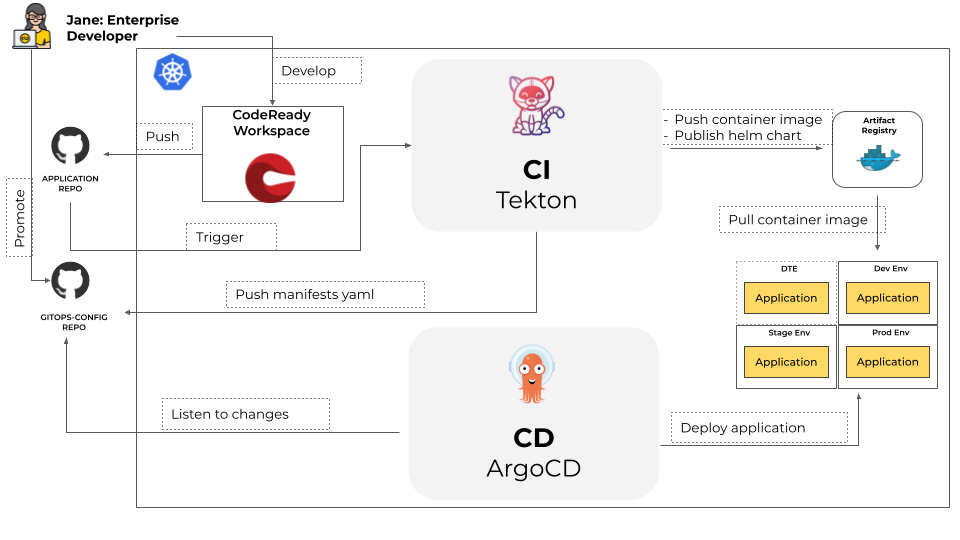

CI and CD Workflow

Now that you understand the delivery model, the next page explains how the two GitOps repositories are structured before you set them up.

Continue to GitOps repository structure.
