Use http-01 certificate challenges

This guide explains how to issue a TLS certificate for a specific hostname using cert-manager's http-01 challenge.

Use this approach when your cluster is publicly reachable from the internet and you need a certificate for a single hostname. cert-manager proves you control the domain by serving a temporary file over http — no DNS provider credentials required. For wildcard certificates or clusters without public internet access, use DNS-01 challenges instead.

Prerequisites:

• A ClusterIssuer is configured on your cluster. Confirm the name with your cluster administrator before starting.
• The hostname you want to secure must resolve to the cluster's ingress IP address before you begin.

Replace the following placeholders with your own values throughout this guide:

Placeholder	Description
HOSTNAME	The hostname to secure (e.g. app.example.com)
CERT_NAME	A name for the Certificate resource
TLS_SECRET_NAME	The name of the Kubernetes secret cert-manager will create
CLUSTER_ISSUER_NAME	The name of the ClusterIssuer on your cluster
APP_NAMESPACE	The namespace where your application runs
ROUTE_NAME	A name for the OpenShift Route resource
SERVICE_NAME	The name of the Kubernetes Service to route traffic to

---

1. Create a DNS record

Add an A record (for a direct IP) or CNAME record (for a hostname) in your DNS provider that maps HOSTNAME to the cluster's ingress address. Contact your cluster administrator if you do not have the ingress address.

cert-manager will attempt the challenge immediately after the Certificate resource is created, so the DNS record must be live before you proceed.

---

2. Deploy the Certificate and Route

Add both resources to your application's Helm chart under templates/:

Certificate

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: CERT_NAME
  namespace: APP_NAMESPACE
spec:
  secretName: TLS_SECRET_NAME
  issuerRef:
    name: CLUSTER_ISSUER_NAME
    kind: ClusterIssuer
  commonName: HOSTNAME
  dnsNames:
    - HOSTNAME

Note

Avoid deleting or recreating certificates unnecessarily. Repeated issuance attempts count against Let's Encrypt rate limits.

Route

apiVersion: route.openshift.io/v1
kind: Route
metadata:
  name: ROUTE_NAME
  namespace: APP_NAMESPACE
  annotations:
    cert-utils-operator.redhat-cop.io/certs-from-secret: TLS_SECRET_NAME
    cert-utils-operator.redhat-cop.io/inject-CA: "false"
spec:
  host: HOSTNAME
  path: /
  port:
    targetPort: http
  to:
    kind: Service
    name: SERVICE_NAME
    weight: 100
  wildcardPolicy: None
  tls:
    termination: edge
    insecureEdgeTerminationPolicy: Redirect

The cert-utils-operator annotation injects the certificate from TLS_SECRET_NAME into the route automatically once cert-manager issues it.

---

3. Validate

Certificate

1. In the cluster console, switch to Administrator view and navigate to Home > Search.
2. Select APP_NAMESPACE and search for Certificate in the Resources dropdown.

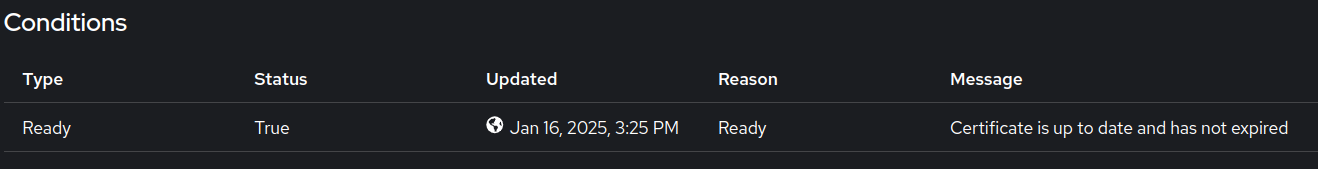

3. Inspect the certificate and confirm the Condition shows it is up-to-date.



Route

1. Navigate to Networking > Routes in the cluster console.
2. Locate ROUTE_NAME and confirm its status is Accepted.
3. Open https://HOSTNAME in a browser to confirm the certificate is valid and the application is reachable.

---

With TLS configured, your application is reachable over https on its custom hostname. See Configure custom domains for the full end-to-end setup including DNS and application-level configuration.
