Configure the Apps GitOps Repository#

By the end of this tutorial, your apps-gitops-config repository will be structured, linked to the infra repository, and ArgoCD will be watching it. Application deployments for your first tenant will be driven from Git.

This is the second bootstrap step. If you haven't yet completed Configure the infra GitOps repository, do that first.

Prerequisites:

The infra GitOps repository is set up and ArgoCD has synced it.
Credentials for your Git provider are already stored in OpenBao from the previous tutorial. If your apps repository requires different credentials than your infra repository, update git-pat-creds in OpenBao with the new values before continuing.

A template repository is available to use as a starting point.

Throughout this tutorial, replace the following placeholders with your own values:

Placeholder	Description
`TENANT_NAME`	The tenant name you defined in the infra repository
`APP_NAME`	The name of your application
`CLUSTER_NAME`	Your cluster folder name (e.g. `dev-cluster`)
`APPS_GITOPS_REPO_URL`	The URL of this apps GitOps repository
`INFRA_GITOPS_REPO_URL`	The URL of your infra GitOps repository

1. Create the repository#

Create an empty repository in your SCM named apps-gitops-config.

2. Build the folder structure#

The apps repository is organized as: tenant → application → environment. Each level is a folder.

Create a folder at the root named after your tenant (TENANT_NAME). Inside the tenant folder, create an argocd-apps folder — this is where ArgoCD Application resources for this tenant will live.

Create an application folder inside the tenant folder (APP_NAME). Inside the application folder, create a folder for each environment (dev, staging, etc.). These folders will hold the Helm chart or plain YAML for each environment.

Your structure should now look like this:

apps-gitops-config/
└── TENANT_NAME/
    ├── argocd-apps/
    │   ├── dev/
    │   └── staging/
    └── APP_NAME/
        ├── dev/
        └── staging/

3. Create ArgoCD applications for each environment#

For each environment, create an ArgoCD Application resource in the matching argocd-apps/<env>/ folder. The application points to the deployment manifests in the sibling application folder.

Create TENANT_NAME/argocd-apps/dev/APP_NAME.yaml:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: TENANT_NAME-dev-APP_NAME
  namespace: rh-openshift-gitops-instance
spec:
  destination:
    namespace: TENANT_NAME-dev
    server: 'https://kubernetes.default.svc'
  project: TENANT_NAME
  source:
    path: TENANT_NAME/APP_NAME/dev
    repoURL: 'APPS_GITOPS_REPO_URL'
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

Create a matching file for each additional environment (e.g. TENANT_NAME/argocd-apps/staging/APP_NAME.yaml).

4. Create the root ArgoCD applications#

The root-level argocd-apps folder is the entry point per cluster. It contains one ArgoCD Application per tenant-environment combination, pointing to the tenant-level argocd-apps above.

Create an argocd-apps/CLUSTER_NAME/ folder for each cluster you are deploying to.

Create argocd-apps/CLUSTER_NAME/TENANT_NAME-dev.yaml pointing to the tenant-level argocd-apps for the dev environment:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: TENANT_NAME-dev
  namespace: rh-openshift-gitops-instance
spec:
  destination:
    namespace: rh-openshift-gitops-instance
    server: 'https://kubernetes.default.svc'
  project: TENANT_NAME
  source:
    path: TENANT_NAME/argocd-apps/dev
    repoURL: 'APPS_GITOPS_REPO_URL'
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

5. Link the apps repository to the infra repository#

This step closes the loop — ArgoCD, bootstrapped from the infra repo, will start watching the apps repo. Make the following changes in your infra repository, inside the cluster folder (e.g. CLUSTER_NAME/).

Create a gitops-repositories/ folder and add an ExternalSecret that gives ArgoCD read access to the apps repository:

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: apps-gitops-creds
  namespace: rh-openshift-gitops-instance
spec:
  refreshInterval: 1m0s
  secretStoreRef:
    name: tenant-vault-shared-secret-store
    kind: SecretStore
  data:
  - remoteRef:
      key: git-pat-creds
      property: username
    secretKey: username
  - remoteRef:
      key: git-pat-creds
      property: password
    secretKey: password
  target:
    name: apps-gitops-creds
    template:
      metadata:
        labels:
          argocd.argoproj.io/secret-type: repository
      data:
        name: apps-gitops-creds
        password: "{{ .password | toString }}"
        username: "{{ .username | toString }}"
        project: TENANT_NAME
        type: git
        url: 'APPS_GITOPS_REPO_URL'

Add an ArgoCD Application in CLUSTER_NAME/argocd-apps/gitops-repositories.yaml that deploys the secret above:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: gitops-repositories
  namespace: rh-openshift-gitops-instance
spec:
  destination:
    server: 'https://kubernetes.default.svc'
  source:
    path: CLUSTER_NAME/gitops-repositories
    repoURL: 'INFRA_GITOPS_REPO_URL'
    targetRevision: HEAD
    directory:
      recurse: true
  project: root-tenant
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

Add an ArgoCD Application in CLUSTER_NAME/argocd-apps/apps-gitops-config.yaml that watches the root argocd-apps in the apps repository:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: apps-gitops-config
  namespace: rh-openshift-gitops-instance
spec:
  destination:
    namespace: rh-openshift-gitops-instance
    server: 'https://kubernetes.default.svc'
  project: root-tenant
  source:
    path: argocd-apps/CLUSTER_NAME
    repoURL: 'APPS_GITOPS_REPO_URL'
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

6. Verify#

Log in to ArgoCD and open the infra-gitops-config application. Verify that gitops-repositories and apps-gitops-config have appeared as child applications and synced successfully.

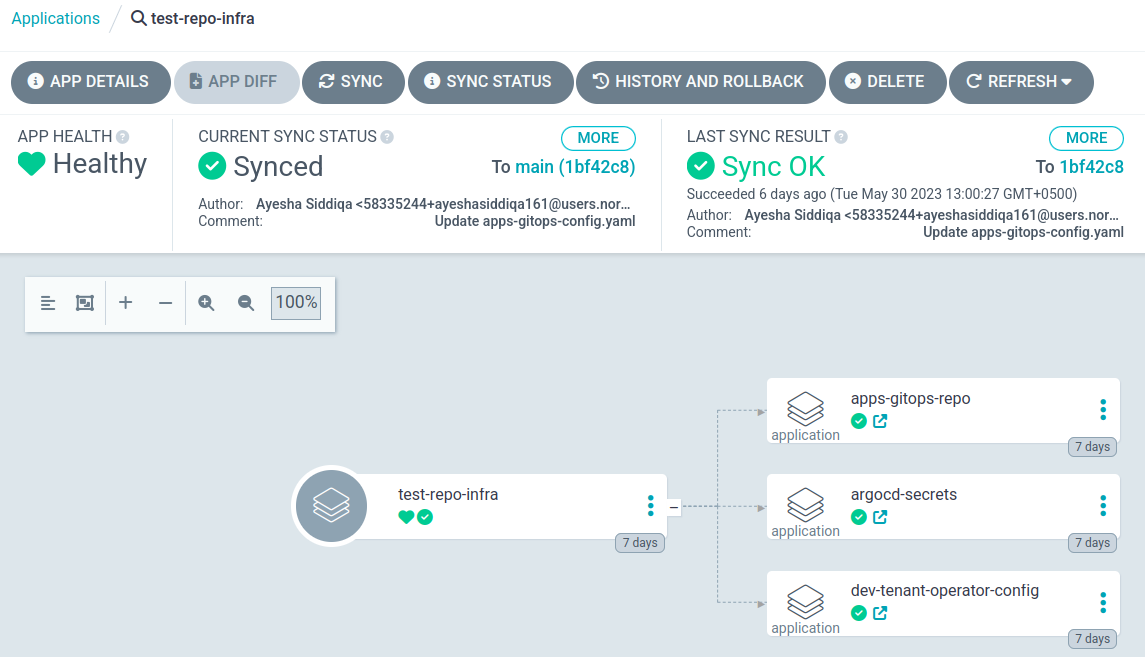

The image below shows a fully linked infra-apps structure in ArgoCD:

Both repositories are now set up and ArgoCD is managing your full GitOps structure. Any commit to the apps repository will be picked up and applied to the cluster automatically.

Continue to Connect your identity provider.
