Configuring Cert Manager Certificate and External DNS#

This document provides a step-by-step guide to configure Cert Manager Certificate and External DNS for different tenants.

Step 1: Setup DNS creds in Vault#

Go to common-shared-secret path in Vault and create a secret external-dns-creds. This secret mainly have credentials for authenticating with DNS provider and should contain following fields:

Cloudflare#

Key	Required/Optional	Explanation
`api-token`	required	API token generated from DNS provider being used. In case of Cloudflare, it should have the following access - `DNS:Edit` - `Zone:Read`
`domain-filter`	optional	This field should contain base domain that becomes base for registering further subdomains. For example: `example.com`.
`zone-id-filter`	optional	In case of Cloudflare, if you want to give more restrictive access of only few zones to this token, then this field should contain these zone ids.

Note

Before proceeding further, confirm with Cluster Administrator that ClusterIssuer is setup in cluster as next steps are dependent on this resource.

Step 2: Create Certificate Resource#

Next step is to deploy Certificate. For that we need to deploy following resources at given paths in Infra GitOps.

ArgoCD application#

Path: <cluster>/argocd-apps/

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: <resource name. E.g. certificate-config>
  namespace: rh-openshift-gitops-instance
spec:
  destination:
    namespace: <tenant's system namespace>
    server: https://kubernetes.default.svc
  project: <project name>
  source:
    path: <cluster>/<path where Certificate resource exist in Infra GitOps repo>
    repoURL: <infra Gitops repo URL>
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

Key Fields#

.spec.destination.namespace: Namespace where you want to deploy certificates. Usually it is system namespace that is assigned to your tenant. Check with cluster admin for availability of this namespace.
.spec.project: Project name that this application should belong to. This can be a name of tenant.
.spec.source.path: Path in Infra GitOps repo that this application should sync. This corresponds to the path of folder where Certificate resource would exist.
.spec.source.repoURL: This is the URL of Infra GitOps repo.

Certificate#

Path: <cluster>/<path where Certificate resource exist in Infra Gitops repo>

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: certificate
spec:
  secretName: <secret name which will host TLS certificate>
  duration: 8760h0m0s
  renewBefore: 720h0m0s
  subject:
    null
  commonName: null
  usages:
    null
  dnsNames:
    - '*.example.com'
  issuerRef:
    name: <cluster issuer name>
    kind: ClusterIssuer
    group: cert-manager.io

Key Fields#

.spec.secretName: Name of the secret that cert-manager will create once the certificate request gets approved by Certificate Authority (in present case LetsEncrypt).
.spec.dnsNames: List of DNS names that you want this certificate to support. This list can also include wild card domain names like *.example.com.
.spec.issuerRef.name: Name of the cluster issuer that you want to use when creating this certificate. You can confirm value for this field with cluster admin.

Commit, push, and merge these changes to the main branch. ArgoCD will deploy the resources to the specified namespaces within few minutes. Confirm that certificate is available in system namespace and is up-to-date before proceeding further.

Step 3: Distribute certificate across tenant namespaces#

The next step is to distribute the TLS certificate across namespaces for use. Create following resources in your Infra GitOps repository at given path:

<cluster>/tenant-operator-config/templates/

Template#

The Template resource defines a way to distribute a secret resource across namespaces. Use the following template for setting up a secret containing TLS certificate:

apiVersion: tenantoperator.stakater.com/v1alpha1
kind: Template
metadata:
  name: certificate-template
resources:
  resourceMappings:
    secrets:
      - name: <secret name containing TLS certificate in system namespace>
        namespace: <system namespace>

Key Fields#

.spec.secret.name: Secret name that certificate will create in system namespace
.spec.secret.namespace: Namespace where certificate will create a secret. Usually this is a system namespace in current tenant.

TemplateGroupInstance#

The TemplateGroupInstance deploys resources by referencing the created templates and specifying target namespaces:

apiVersion: tenantoperator.stakater.com/v1alpha1
kind: TemplateGroupInstance
metadata:
  name: certificate-creds
spec:
  template: certificate-template
  selector:
    matchExpressions:
      - key: stakater.com/tenant
        operator: In
        values: [ <comma separated tenant names list> ]
  sync: true

Key Fields#

.spec.template: References the Template resource.
.spec.selector: Specifies namespaces to deploy resources based on label expressions.
- In this example, resources are deployed to tenant with the label stakater.com/tenant having values tenant1 or tenant2. Ensure this list includes the names of all tenants where the secret needs to be available.

Commit, push, and merge these changes to the main branch. ArgoCD will deploy the resources to the specified namespaces within a few minutes.

Step 4: Validation#

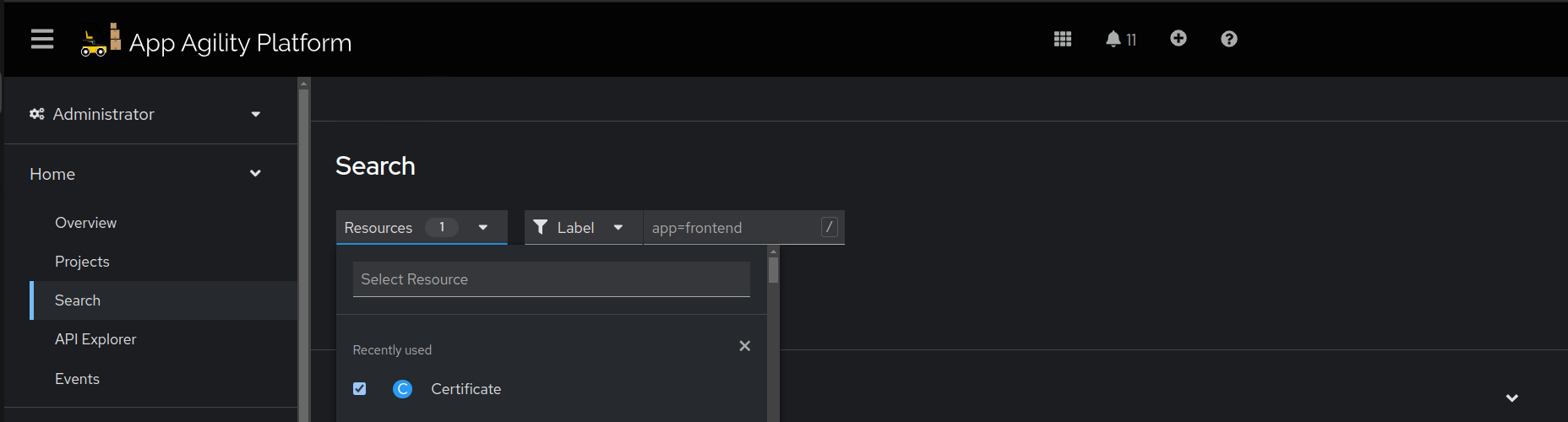

In the cluster console, switch to Administrator view and navigate to Home > Search.
Select the system namespace and search for Certificate in the Resources dropdown.

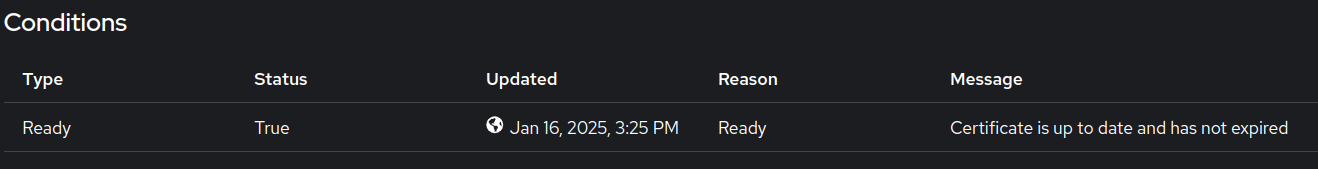

Inspect the deployed certificate. In the Condition section, confirm that the issuer is up-to-date.
Also confirm the other namespace has correct secret available.
