Creating a backup schedule

Creating a backup schedule for an application using the OpenShift ADP (Application Data Protection) Operator involves several steps. This guide will walk you through the process, from installing the ADP Operator to configuring backup schedules.

Objectives

• Create a backup schedule for your application
• Restore application

Key Results

• Application successfully restored using the OADP operator

Tutorial

Add Namespace to Tenant

You will need create a TENANT-system namespace for Back and Restore functionality to work. When the system namespace is added, MTO deploys the OADP operator to the TENANT-system namespace. Let's see how you can create this namespace.

1. Open up the infra-gitops-config repository.

2. Navigate to the folder containing the Tenant definitions.

3. Now open the Tenant to which your application belongs.

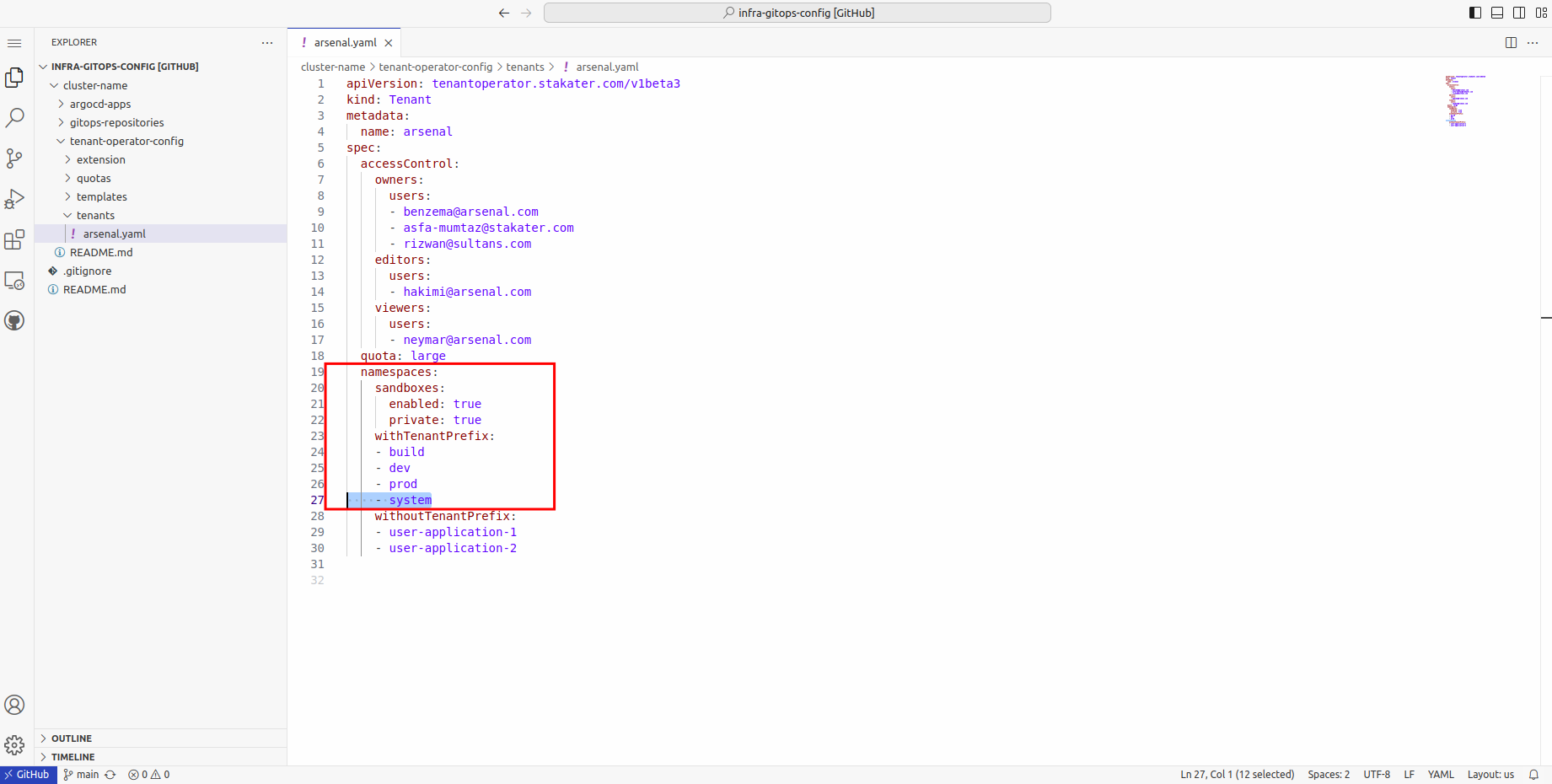

4. Under the namespaces, add the 'system' namespace. Commit the change



5. After a few, the system namespace should start showing in SAAP. You will also see some pods running in the namespace



Create a Backup Schedule

For creating a backup schedule, you will need to deploy the Schedule CR to the TENANT-system namespace Let us deploy a Backup Schedule for our application

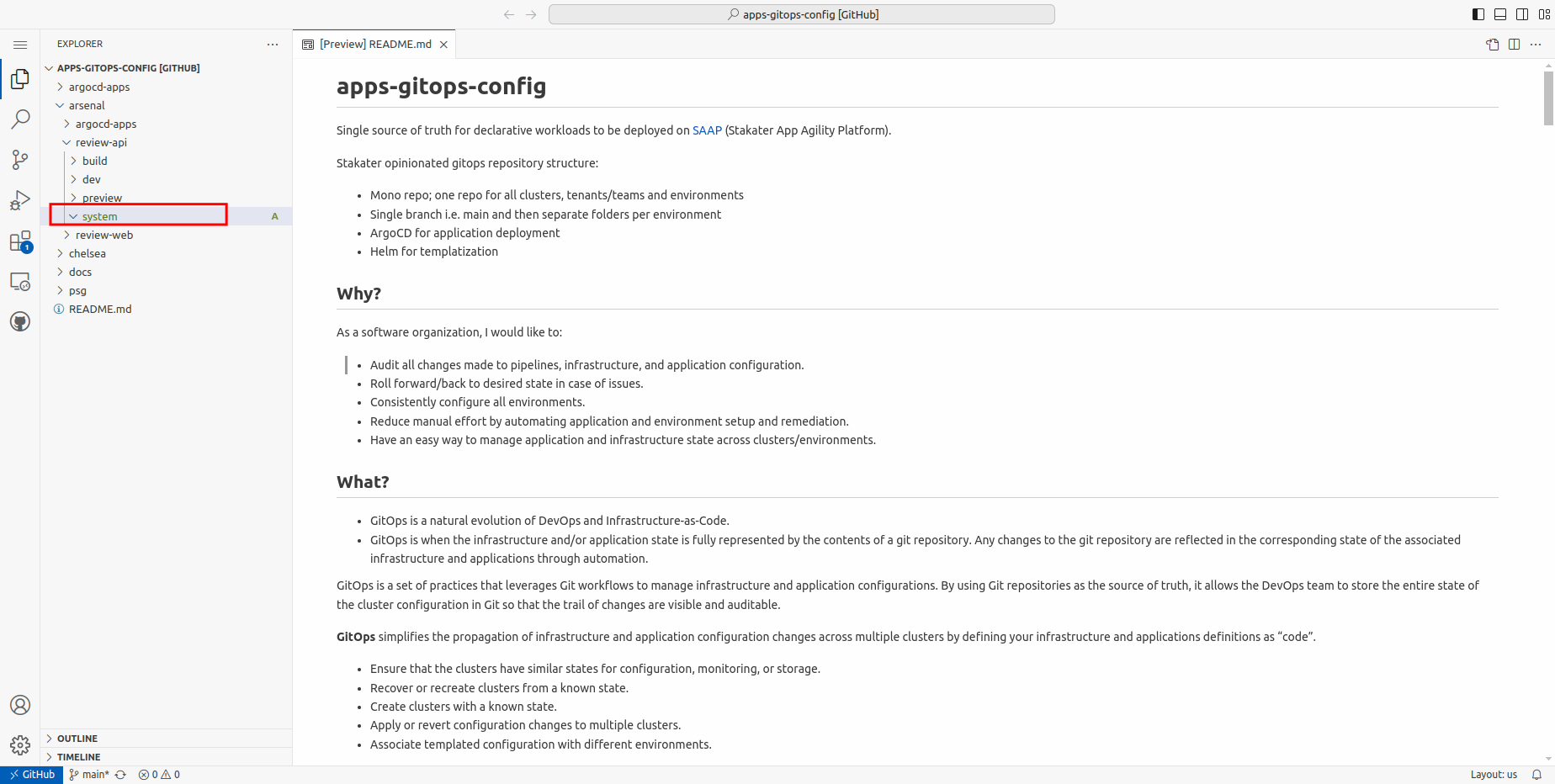

1. Navigate to the application GitOps repository. In your application's environments, add a 'system' environment folder.

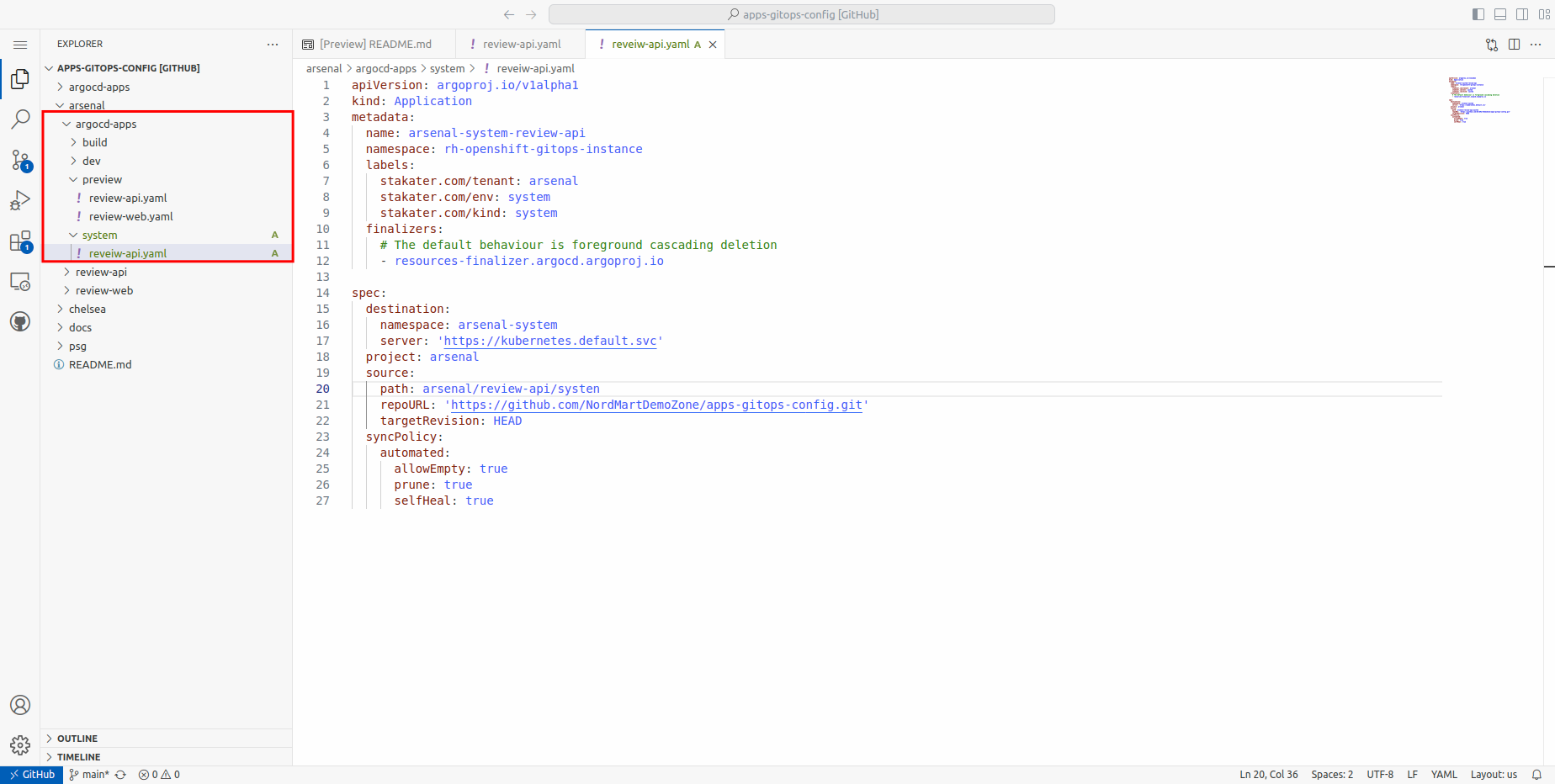

2. Next, add the ArgoCD application that points to the above folder.



3. Now add the Backup Schedule in the system environment folder. Remember to replace the placeholder values.

   apiVersion: velero.io/v1
   kind: Schedule
   metadata:
     name: [APPNAME]-backup
     namespace: [TENANT]-system
   spec:
     schedule: * 11 * * *
     template:
       defaultVolumesToRestic: true
       excludedResources:
         - daemonsets
         - statefulsets
         - nodes
         - apiservices
         - events
         - resourcequotas
         - controllerrevisions.apps
       includedNamespaces:
         - [TENANT]-dev
       includedResources:
         - deployments
         - services
         - persistentvolumeclaims
         - secrets
         - configmaps
       labelSelector:
         matchLabels:
           app.kubernetes.io/part-of: [APP-NAME] #Replace this with a label present on your application
       snapshotVolumes: true
       storageLocation: dpa-1
       ttl: 1h0m0s


   Note

   In the labelSelector field, add a common label that is present on all the resources of your application

4. Once ArgoCD syncs the changes, you should be able to see Schedule CR on the cluster. It should show as 'Enabled'.



5. When the scheduled time arrives, a backup will be automatically created and stored in the designated storage location configured by the SAAP Admin. For the purpose of this tutorial, we are using AWS S3 buckets to store the backups.

Restore Application from Backup

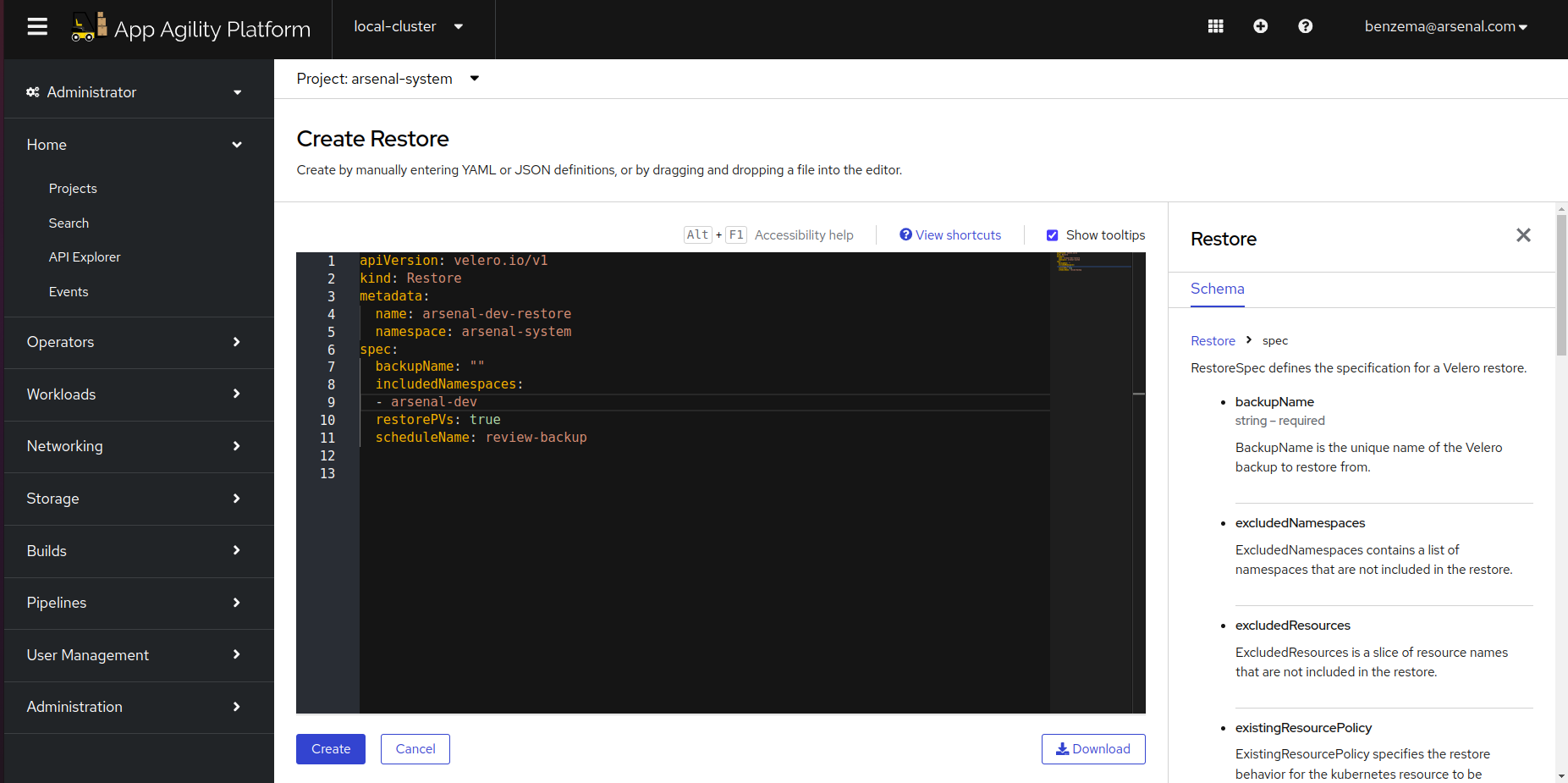

1. To restore the application, you will simply need to deploy the Restore CR to tenant-system namespace. Here's a sample configuration:

   apiVersion: velero.io/v1
   kind: Restore
   metadata:
     name: arsenal-dev-restore
     namespace: arsenal-system
   spec:
     backupName: ""
     includedNamespaces:
       - [TENANT]-dev
     itemOperationTimeout: 4h0m0s
     restorePVs: true
     scheduleName: [SCHEDULE-NAME]


   Remember to replace the placeholder values.



   Note

   When restoring using a schedule, the backupName should be empty. OADP will automatically replace it with the latest backup.

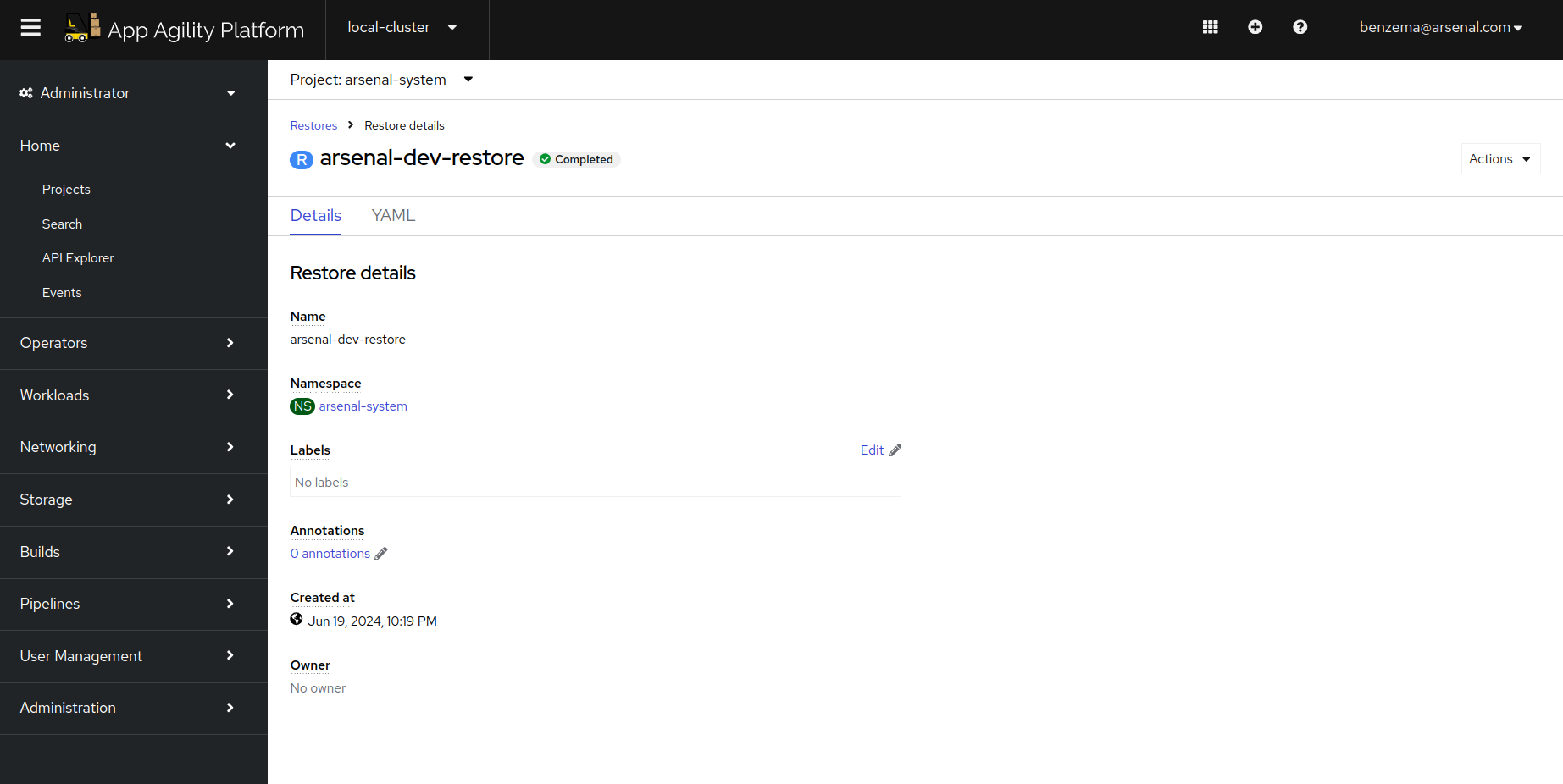

2. Once the Restore CR is created, you will see the Restore showing 'InProgress'. After the Backup is complete, the status will show as complete.
