Use a ClusterTask in Pipeline#

PreRequisites#

ClusterTask is deployed via Infra GitOps Repository.

Objective#

Add a clusterTask to enhance Tekton pipeline.

Key Results#

Update Tekton chart values in GitOps.
Pipeline Update and Tasks runs successfully.

Guide#

Verify that Task Exists#

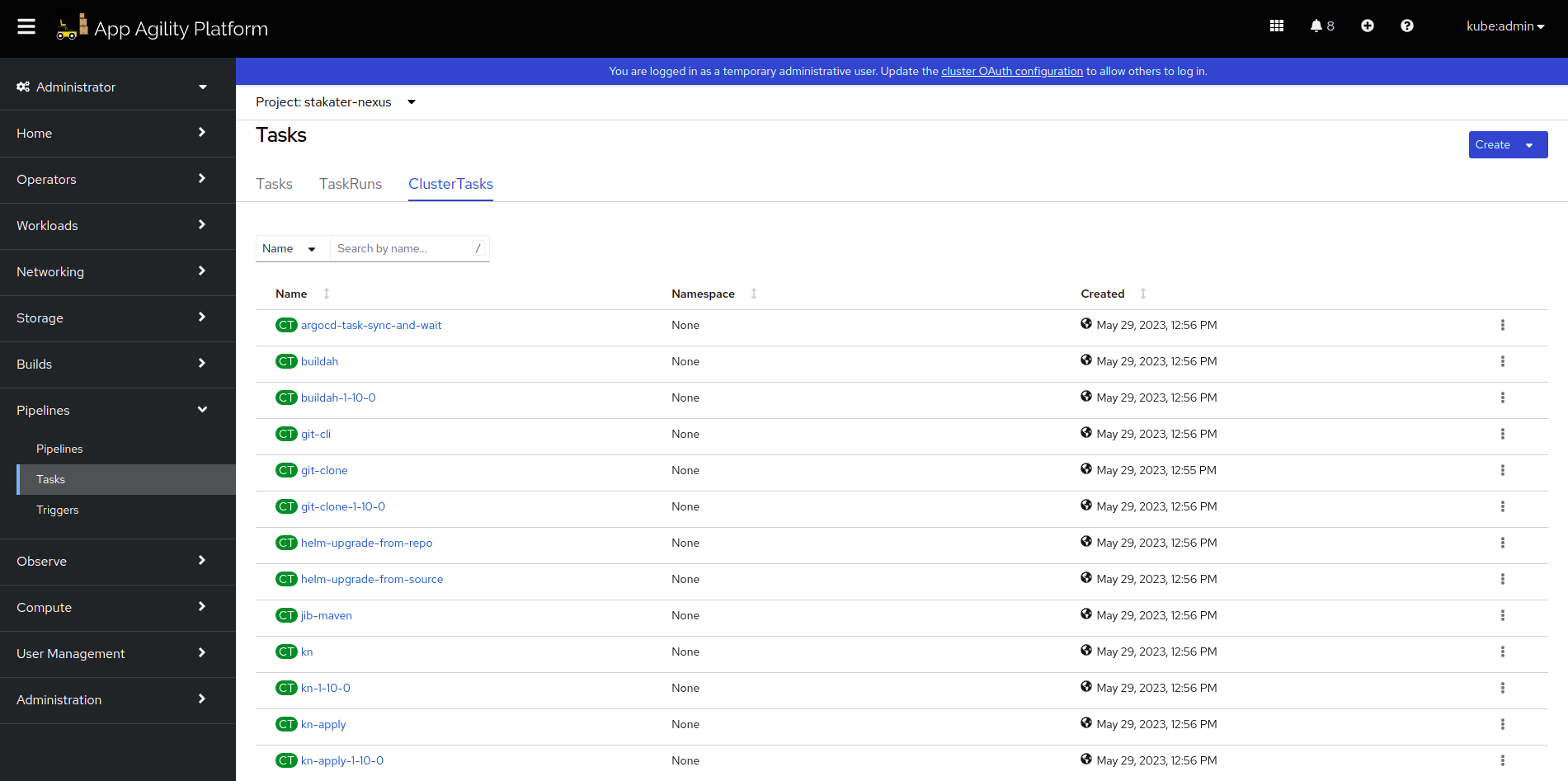

Login to the OpenShift console, Select Pipelines > Tasks from the left bar and then select ClusterTasks tab in right pane.
Verify that your Task exists on the cluster by searching its name.

Add clustertask in pipeline in place#

To specify this task as default task, follow the next section

Open your Apps GitOps Repository and Navigate to the folder of your pipelines either tenant/app-name/build or tenant/tekton-pipelines/build folder.


Open values.yaml file and add the following YAML in pipeline.tasks:

      - defaultTaskName: git-clone
        params:
          - name: url
            value: "git@github.com:stakater-ab/mto-console.git"
        workspaces:
          - name: ssh-directory
            workspace: ssh-directory
      ↓↓↓↓↓↓↓↓↓↓↓↓↓
      - name: CLUSTER_TASK_NAME
        taskRef:
          kind: ClusterTask
          name: CLUSTER_TASK_NAME
        params:
        - name: PARAM1
          value: VALUE1
        - name: PARAM2
          value: $(params.PARAM2)
        - name: PARAM3
          value: $(tasks.TASK_NAME.results.RESULT_NAME)
      ↑↑↑↑↑↑↑↑↑↑↑↑↑↑
      - defaultTaskName: stakater-create-git-tag-0-0-3

If you want to override a parameter, you could simply define it with its new value as shown above.

If the task requires a workspace, Add the workspace in stakater-tekton-chart.workspaces. See values.yaml for other configurations.

  workspaces:
    - name: source
      volumeClaimTemplate:
        accessModes: ReadWriteOnce
        resourcesRequestsStorage: 1Gi
    ↓↓↓↓↓↓↓↓↓↓↓↓↓
    - name: WORKSPACE_NAME
      secret:
        secretName: MY_SECRET_NAME
    ↑↑↑↑↑↑↑↑↑↑↑↑↑

Then, Add the workspace in pipeline.tasks:

      - defaultTaskName: git-clone
        params:
          - name: url
            value: "git@github.com:stakater-ab/mto-console.git"
        workspaces:
          - name: ssh-directory
            workspace: ssh-directory
      ↓↓↓↓↓↓↓↓↓↓↓↓↓
      - name: CLUSTER_TASK_NAME
        taskRef:
          kind: ClusterTask
          name: CLUSTER_TASK_NAME
        params:
        - name: PARAM1
          value: VALUE1
        - name: PARAM2
          value: $(params.PARAM2)
        - name: PARAM3
          value: $(tasks.TASK_NAME.results.RESULT_NAME)
        workspaces:
        - name: WORKSPACE_NAME_IN_TASK
          value: WORKSPACE_NAME_IN_VALUES # co responds to workspaces[].name
      ↑↑↑↑↑↑↑↑↑↑↑↑↑
      - defaultTaskName: stakater-create-git-tag-0-0-3

You can override params in ClusterTask simply by specifying it inside the params field.

Create a pull request and get these changes merged.

Add clustertask in pipeline as default task#

Don't follow this section if you have completed the above section.

If you want to add this clustertask as defaultTask in stakater-tekton-chart, you will need to fork and version control the chart. Push a new version of chart for every new default task.

Fork the Tekton Chart#

Fork this repository stakater-tekton-chart in your organization and setup CI for pushing helm chart.

This should only be performed once.

Add the Task#

Navigate to stakater-tekton-chart/default-config/tasks directory. Make a new YAML file named same as clustertask name.

Inside the file, name field will be matched with defaultTaskName in pipeline.tasks[].defaultTaskName to get taskRef or taskSpec, params & workspaces.

# name field can be different from CLUSTER_TASK_NAME, this field is matched with defaultTaskName in pipeline.tasks[].defaultTaskName to get the params,workspaces, when, taskRef fields.
name: DEFAULT_CLUSTER_TASK_NAME
taskRef:
  task: CLUSTER_TASK_NAME
  kind: ClusterTask
  # kind: Task
params:
- name: PARAM1
  value: $(params.VALUE1)
workspaces:
# workspace with .name should be defined in values file in workspaces[].
- name: WORKSPACE1_IN_CLUSTERTASK
  workspace: WORKSPACE1_IN_VALUES

Save this file. Merge the changes into main branch and push the corresponding helm chart.
Open your Apps GitOps Repository and Navigate to the folder of your pipelines either tenant/app-name/build or tenant/tekton-pipelines/build folder.
Open the Chart.yaml file and update the repository and version in dependencies[].repository and dependencies[].version.
Now you can add this task in pipeline under .Values.pipeline.tasks[] in values.yaml as following:
```
pipelines:
  tasks:
  - defaultTaskName: DEFAULT_CLUSTER_TASK_NAME
    # name: PIPELINE_READABLE_CLUSTER_TASK_NAME
```
1. Specify name to make step name readable or avoid conflicting task names.
2. If your task uses a workspace, make sure you have defined it inside workspaces[] in values.yaml as well.

Resulting pipeline manifest

# Source: stakater-tekton-chart/templates/pipeline.yaml
apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: pipeline_name
spec:
  params:
  - name: PARAM1
    type: string
  workspaces:
  - name: WORKSPACE1_IN_VALUES
    ...
  tasks:
  - name: PIPELINE_READABLE_CLUSTER_TASK_NAME
    taskRef:
      name: CLUSTER_TASK_NAME
      kind: ClusterTask
    params:
    - name: PARAM1
      value: $(params.VALUE1)
    workspaces:
    - name: WORKSPACE1_IN_CLUSTERTASK
      workspace: WORKSPACE1_IN_VALUES

Create a pull request and get these changes merged.

Verify the updated pipeline#

Log in to ArgoCD and open the application corresponding to this environment. You can find the application name in tenant/argocd-apps/env/app-name-env.yaml or tenant/argocd-apps/env/tekton-pipeline-env.yaml.
Check if your pipeline resource is updated by clicking on the pipeline resource.
Trigger the pipeline by making a change in your code repository and see if your task works as expected for pull request opened, updated and merged scenarios.
